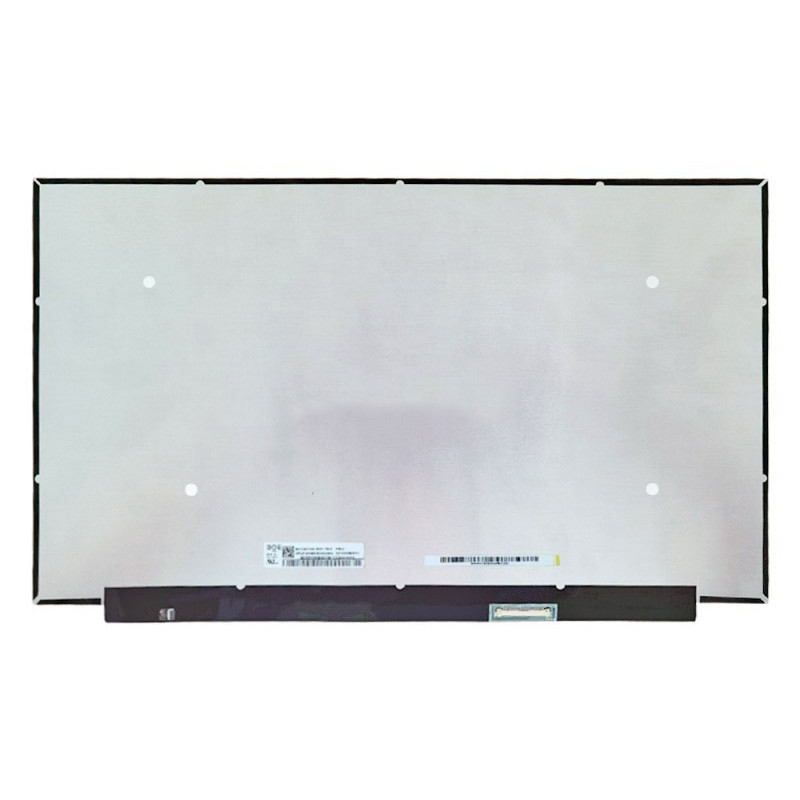

NV156FHM-NX1 LCD screen panel

Q: What are the resolution and refresh rate of this screen?

Resolution: 1920(RGB)×1080, 16:9, FHD | Refresh Rate: 120HZ . Important considerations: Your laptop's graphics chip (GPU) must support this resolution and refresh rate. For example, 4K (3840x2160) requires a GPU with DisplayPort 1.2 or higher, and the LCD cable must have sufficient bandwidth (typically 40‑pin eDP). If your original screen was 1366x768 and you install a 1920x1080 panel, the system may work but the BIOS/EDID must recognise the new resolution – some older laptops are locked to the original resolution. High refresh rates (e.g., 144Hz) require a compatible cable and graphics output – ensure your laptop supports it. If you are upgrading to a higher resolution, we recommend checking your laptop's service manual or online forums for confirmed compatibility.

Q: What interface does this screen use, and what are the connector details?

Common interface types for reference: eDP 30 pin, Narrow: Width 0.67 inch (17mm), Pitch 0.4mm – common in ultra‑thin laptops. eDP 30 pin, Standard: Width 0.75 inch (19mm), Pitch 0.5mm – common in standard 14″–15.6″ models. eDP 40 pin, Narrow: Width 0.79 inch (20mm) or 0.83 inch (21mm), Pitch 0.4mm – used for 4K and high‑refresh panels. eDP 40 pin, Standard: Width 1.0 inch (25mm), Pitch 0.5mm – used in larger gaming laptops. LVDS 40 pin: Width 1.0 inch (25mm), Pitch 0.5mm – older interface, limited bandwidth. How to verify: Check the connector on your original screen – look for printed labels (e.g., "30P 0.4mm") or measure with a ruler. Compare with our product photos. If you are unsure, send us a clear photo of your original screen's connector – we can match it for you.

Q: What is the physical size of this screen?

Screen size: 15.6 (measured diagonally). Important: Even a 0.1‑inch difference can make the panel not fit in your bezel or the mounting holes may not align. Always measure your current screen's active area (visible portion) and outer dimensions (including the mounting tabs). Additionally, check the aspect ratio – most modern laptops use 16:9, but some use 16:10 (which is slightly taller). A 16:10 screen in a 16:9 bezel will not fit physically, and vice versa. How to measure: Remove the screen from the laptop and measure the diagonal of the active area (from corner to corner). Also measure the width and height of the entire panel (including the metal frame). Compare these numbers with our product specifications.

Q: Is this a touchscreen?

Touch support: No . This is a standard (non‑touch) panel. It will work in any laptop that accepts a non‑touch screen. If your laptop originally had a touchscreen, installing this non‑touch panel will result in lost touch functionality (but the display will still work). You may also need to use a non‑touch LCD cable.

Q: What is the grade/condition of this screen?

Grade: Grade A+ . Understanding LCD grades: Grade A+ (New): Brand new, flawless panel, zero dead pixels, uniform brightness – the highest quality. Grade A (New compatible): New, but may have minor cosmetic variations (e.g., slightly different backlight uniformity) – rarely noticeable. Grade B (Used/Refurbished): May have a few ( We ship all screens in the grade stated on the product page. All screens are tested for functionality – no lines, no flickering, and backlight is working. If you require a specific grade, please check the product description or contact us before ordering.

Q: Does this screen have any dead pixels or defects?

All our LCD screens are strictly tested before shipping. They are guaranteed to be free of dead pixels, bright dots, and lines at the time of shipment. What to do if you find defects after installation: Check if the issue is caused by a loose cable – reseat the LCD cable on both ends. Test the screen on another compatible laptop (if possible) to isolate the issue. If the defects are clearly on the panel (e.g., a cluster of dead pixels or a visible scratch), contact our support within 7 days with photos – we will arrange a replacement or refund. Our warranty covers manufacturing defects only – physical damage during installation is not covered.

Q: Where is the screen physically located, and how is it attached?

The LCD screen is located inside the display lid (A Cover + B Cover) of the laptop. It is attached as follows: To the A Cover (top lid): The screen is usually screwed onto the A Cover using 4‑8 small screws around the edges. Some models use adhesive tape or a metal frame instead of screws. Behind the B Cover (bezel): The bezel covers the front of the screen – it must be removed first to access the screen. The LCD cable connects from the back of the screen (or bottom edge) to the motherboard, passing through the hinge. The screen also has a backlight cable (sometimes integrated with the main cable) that supplies power to the LED backlight. Accessing the screen requires removing the bezel – some models also require removing the entire display assembly (lid) from the base to avoid damaging cables.

Q: How do I connect the LCD cable to the screen and motherboard?

The connection involves two ends: Screen end: The cable plugs into a connector on the back of the LCD panel (or at the bottom edge). This is typically a ZIF (Zero Insertion Force) connector. To connect: Flip up the small locking tab on the screen connector. Insert the cable with the gold contacts facing up (toward the tab) – the cable is often marked with a blue or red stripe to indicate pin 1. Press the tab down firmly to lock. Motherboard end: The cable plugs into a header on the system board, usually labelled LCD , LVDS , eDP , or J_LCD . The procedure is the same – lift the ZIF tab, insert the cable correctly, and lock. Critical: The cable must be inserted all the way – if it is not fully seated, you will get a partial display or no image. Do not force the cable; if it does not go in easily, check the orientation. Always disconnect the battery before connecting or disconnecting the LCD cable to avoid short circuits.

ID: PCS-7835 Type: WLED display Size: 15.6 Model/PN: NV156FHM-NX1 Refresh Rate: 120HZ Resolution: 1920(RGB)×1080, 16:9, FHD Interface: EDP 40 pin Connector width: 25mm Pin pitch: 0.5mm Condition: Grade A+

Availability: In Stock

‌EUR € 81.00

Qty

Bulk Quote

Shipping Estimate ship from China Click to detect

DDP - Delivered Duty Paid (Remote not included) / DDU - Delivered Duty Unpaid

Calculate Shipping

Guaranteed to fit your Display Panel NV156FHM-NX1
Free step-by-step repair guide File
Tracked shipping & easy returns

Complete specifications for reference:
Acer Aspire A715-42 Series Acer Aspire A715-42G Series Acer Aspire A715-43 Series Acer Aspire A715-43G Series Acer Aspire A715-51G Series Acer Aspire A715-76 Series Acer Aspire A715-76G Series Acer Nitro 5 AN515-54 Series Acer Nitro 5 AN515-55 Series Acer Nitro 5 AN515-56 Series Acer Nitro 5 AN515-58 Series Asus A506 Series Asus A506I Asus A506IV Asus A571 Series Asus A571G Asus A571GT Asus F571 Series Asus F571G Asus F571GT Asus TUF Gaming A15 FA506 Series Asus TUF Gaming A15 FA506I Asus TUF Gaming A15 FA506IC Asus TUF Gaming A15 FA506IE Asus TUF Gaming A15 FA506IH Asus TUF Gaming A15 FA506IHR Asus TUF Gaming A15 FA506II Asus TUF Gaming A15 FA506IU Asus TUF Gaming A15 FA506IV Asus TUF Gaming A15 FA506N Asus TUF Gaming A15 FA506NF Asus TUF Gaming A15 FA506Q Asus TUF Gaming A15 FA506QE Asus TUF Gaming A15 FA506QM Asus TUF Gaming A15 FA506QR Asus TUF Gaming A15 FA507 Series Asus TUF Gaming A15 FA507N Asus TUF Gaming A15 FA507NU Asus TUF Gaming A15 FA507NV Asus TUF Gaming A15 FA507R Asus TUF Gaming A15 FA507RC Asus TUF Gaming A15 FA507RE Asus TUF Gaming A15 FA507RF Asus TUF Gaming A15 FA507RM Asus TUF Gaming A15 FA507RR Asus TUF Gaming A15 FA507RW Asus TUF Gaming A15 FA507U Asus TUF Gaming A15 FA507UI Asus TUF Gaming A15 FA507UV Asus TUF Gaming A15 FA507X Asus TUF Gaming A15 FA507XI Asus TUF Gaming A15 FA507XU Asus TUF Gaming A15 FA507XV Asus FA566 Series Asus FA566I Asus FA566IC Asus FA566IH Asus FA566II Asus FA566IU Asus FA577 Series Asus FA577R Asus FA577RE Asus TUF Gaming FX505 Series Asus TUF Gaming FX505D Asus TUF Gaming FX505DT Asus TUF Gaming FX505DV Asus TUF Gaming FX505G Asus TUF Gaming FX505GT Asus TUF Gaming FX505L Asus TUF Gaming FX505LH Asus TUF Gaming F15 FX506 Series Asus TUF Gaming F15 FX506H Asus TUF Gaming F15 FX506HC Asus TUF Gaming F15 FX506HE Asus TUF Gaming F15 FX506HEB Asus TUF Gaming F15 FX506HF Asus TUF Gaming F15 FX506HM Asus TUF Gaming F15 FX506I Asus TUF Gaming F15 FX506IH Asus TUF Gaming F15 FX506II Asus TUF Gaming F15 FX506IU Asus TUF Gaming F15 FX506IV Asus TUF Gaming F15 FX506L Asus TUF Gaming F15 FX506LH Asus TUF Gaming F15 FX506LHB Asus TUF Gaming F15 FX506LI Asus TUF Gaming F15 FX506LU Asus TUF Gaming F15 FX507 Series Asus TUF Gaming F15 FX507V Asus TUF Gaming F15 FX507VI Asus TUF Gaming F15 FX507VU Asus TUF Gaming F15 FX507VV Asus TUF Gaming F15 FX507Z Asus TUF Gaming F15 FX507ZC Asus TUF Gaming F15 FX507ZE Asus TUF Gaming F15 FX507ZI Asus TUF Gaming F15 FX507ZM Asus TUF Gaming F15 FX507ZR Asus TUF Gaming F15 FX507ZU Asus TUF Gaming F15 FX507ZV Asus FX516 Series Asus FX516P Asus FX516PC Asus FX516PE Asus FX516PM Asus FX516PR Asus FX517 Series Asus FX517Z Asus FX517ZC Asus FX517ZE Asus FX517ZM Asus FX517ZR Asus FX531 Series Asus FX531G Asus FX531GT Asus FX566 Series Asus FX566H Asus FX566HC Asus FX566HM Asus FX566L Asus FX566LH Asus FX566LI Asus FX566LU Asus FX571 Series Asus FX571G Asus FX571GT Asus FX577 Series Asus FX577Z Asus FX577ZE Asus ROG STRIX G512 Series Asus ROG STRIX G512I Asus ROG STRIX G512IC Asus ROG STRIX G512L Asus ROG STRIX G512LI Asus ROG STRIX G512LU Asus ROG STRIX G512LV Asus ROG STRIX G512LW Asus ROG STRIX G512LWS Asus ROG STRIX G513 Series Asus ROG STRIX G513I Asus ROG STRIX G513IC Asus ROG STRIX G513IE Asus ROG STRIX G513IH Asus ROG STRIX G513IH-HN Asus ROG STRIX G513IM Asus ROG STRIX G513IR Asus ROG STRIX G513Q Asus ROG STRIX G513QC Asus ROG STRIX G513QE Asus ROG STRIX G513QM Asus ROG STRIX G513QR Asus ROG STRIX G513R Asus ROG STRIX G513RC Asus ROG STRIX G531 Series Asus ROG STRIX G531G Asus ROG STRIX G531GD Asus ROG STRIX G531GT Asus ROG STRIX G531GU Asus ROG STRIX G531GV Asus ROG STRIX G531GW Asus ROG Zephyrus G15 GA502 Series Asus ROG Zephyrus G15 GA502D Asus ROG Zephyrus G15 GA502DU Asus ROG Zephyrus G15 GA502I Asus ROG Zephyrus G15 GA502IU Asus ROG Zephyrus G15 GA502IV Asus G15 GA503 Series Asus G15 GA503Q Asus G15 GA503QC Asus G15 GA503QE Asus G15 GA503QM Asus G15 GA503QR Asus G15 GA503QS Asus G15 GA532 Series Asus G15 GA532D Asus G15 GA532DU Asus G15 GA532I Asus G15 GA532IU Asus G15 GA532IV Asus ROG Strix GL531 Series Asus ROG Strix GL531G Asus ROG Strix GL531GT Asus GL542 Series Asus GL542L Asus GL542LI Asus GL543 Series Asus GL543I Asus GL543IM Asus GL543Q Asus GL543QE Asus Zephyrus M15 GU502 Series Asus Zephyrus M15 GU502D Asus Zephyrus M15 GU502DU Asus Zephyrus M15 GU502L Asus Zephyrus M15 GU502LU Asus Zephyrus M15 GU502LV Asus Zephyrus M15 GU502LW Asus Zephyrus M15 GU502LWS Asus Zephyrus M15 GU532 Series Asus Zephyrus M15 GU532L Asus Zephyrus M15 GU532LV Asus Zephyrus M15 GU532LW Asus K571 Series Asus K571G Asus K571GT Asus K6500 Series Asus K6500Z Asus K6500ZC Asus K6500ZH Asus K6502 Series Asus K6502V Asus K6502VJ Asus K6502Z Asus K6502ZC Asus VivoBook Pro 15 K6502 Series Asus VivoBook Pro 15 K6502H Asus VivoBook Pro 15 K6502HE Asus VivoBook Pro 15 K6502HC Asus M6500 Series Asus M6500I Asus M6500IH Asus M6500Q Asus M6500QB Asus M6500QC Asus M6500QE Asus M6500QF Asus M6500QH Asus M6500R Asus M6500RC Asus M6500RE Asus M6500X Asus M6500XU Asus M6500XV Asus M6501 Series Asus M6501R Asus M6501RR Asus N6500 Series Asus N6500R Asus N6500RC Asus N6500Z Asus N6500ZC Asus NX571 Series Asus NX571G Asus NX571GT Asus NX6502 Series Asus NX6502Z Asus NX6502ZC Asus PX507 Series Asus PX507Z Asus PX507ZC Asus PX507ZC4 Asus PX507ZV Asus PX507ZV4 Asus PX512 Series Asus PX512L Asus PX512LI Asus PX513 Series Asus PX513Q Asus PX513QC Asus PX531 Series Asus PX531G Asus PX531GT Asus Q530 Series Asus Q530V Asus Q530VJ Asus Q540 Series Asus Q540V Asus Q540VJ Asus RX571 Series Asus RX571G Asus RX571GT Asus S571 Series Asus S571G Asus S571GT Asus S1502 Series Asus S1502V Asus S1502VA Asus TUF505 Series Asus TUF505D Asus TUF505DT Asus TUF505DV Asus TUF505G Asus TUF505GT Asus TUF506 Series Asus TUF506H Asus TUF506HC Asus TUF506HCB Asus TUF506HCNT Asus TUF506HE Asus TUF506HF Asus TUF506HM Asus TUF506I Asus TUF506IC Asus TUF506IE Asus TUF506IH Asus TUF506II Asus TUF506IU Asus TUF506IV Asus TUF506LH Asus TUF506LI Asus TUF506LU Asus TUF506Q Asus TUF506QE Asus TUF506QM Asus TUF506QR Asus TUF507 Series Asus TUF507N Asus TUF507NU Asus TUF507NV Asus TUF507R Asus TUF507RE Asus TUF507RM Asus TUF507RR Asus TUF507X Asus TUF507XI Asus TUF507XV Asus TUF507Z Asus TUF507ZM Asus TUF507ZU Asus TUF507ZU4 Asus TUF516 Series Asus TUF516P Asus TUF516PC Asus TUF516PE Asus TUF516PM Asus TUF516PR Asus TUF517 Series Asus TUF517Z Asus TUF517ZC Asus TUF517ZE Asus TUF517ZM Asus TUF565 Series Asus TUF565D Asus TUF565DT Asus TUF565DV Asus TUF566 Series Asus TUF566H Asus TUF566HC Asus TUF566HCB Asus TUF566HE Asus TUF566HM Asus TUF566I Asus TUF566II Asus TUF566IU Asus TUF566IV Asus TUF566L Asus TUF566LH Asus TUF566LI Asus TUF566LU Asus TUF566Q Asus TUF566QM Asus TUF566QR Asus X571 Series Asus X571G Asus X571GT Asus X1502 Series Asus X1502V Asus X1502VA DELL Inspiron 15 3000 DELL Inspiron 15-3000 Series DELL Inspiron 3520 DELL Inspiron 15 3520 DELL Inspiron 15-3520 ( P112F ) DELL Inspiron 15-3520 ( P112F001 ) DELL Inspiron 15-3520 ( P112F002 ) DELL Inspiron 3525 DELL Inspiron 15 3525 DELL Inspiron 15-3525 ( P112F ) DELL Inspiron 15-3525 ( P112F005 ) DELL Inspiron 15-3525 ( P112F006 ) DELL Vostro 15 3000 DELL Vostro 15-3000 Series DELL Vostro 3520 DELL Vostro 15 3520 DELL Vostro 15-3520 ( P112F ) DELL Vostro 15-3520 ( P112F001 ) DELL Vostro 15-3520 ( P112F002 ) DELL Vostro 3525 DELL Vostro 15 3525 DELL Vostro 15-3525 ( P112F ) DELL Vostro 15-3525 ( P112F005 ) DELL Vostro 15-3525 ( P112F006 ) Gigabyte G5 KF5 (2023) Gigabyte G5 KF5 (2024) Gigabyte G5 KF5-53ES353SD Gigabyte G5 KF5-53ES354SD Gigabyte G5 KF5-53PT353SD Gigabyte G5 KF5-H3PT354KD Gigabyte G5 KF-E3ES313SD Gigabyte G5 KF-E3ES313SH Gigabyte G5 KF-E3DE313SD Gigabyte G5 ME Gigabyte G5 MF5 (2023) Gigabyte G5 MF5 (2024) Gigabyte G5 MF5-52ES354SD Gigabyte G5 MF5-H2ES354KD HP Victus 15-FA Series HP Victus 15-FAxxx Series HP Omen de HP 16-WF Series HP Omen 16-WFxxx Series Lenovo IdeaPad Gaming 3-15IMH05 Series Lenovo IdeaPad Gaming 3 15IMH05 ( 81Y4 ) Series Lenovo Legion 5-15ARH7 Series Lenovo Legion 5 15ARH7 ( 82RE ) Series Lenovo Legion 5-15ARH7H Series Lenovo Legion 5 15ARH7H ( 82RD ) Series Lenovo Legion 5-15IAH7 Series Lenovo Legion 5 15IAH7 ( 82RC ) Series Lenovo Legion 5-15IAH7H Series Lenovo Legion 5 15IAH7H ( 82RB ) Series Lenovo Legion 5-15IMH05H Series Lenovo Legion 5 15IMH05H ( 81Y6 ) Series Lenovo LOQ 15IRH8 Series Lenovo LOQ 15IRH8 ( 82XV ) Series Medion Erazer Crawler E30 Medion Erazer E50I Medion Erazer Deputy P10 Medion Erazer P60 Medion Erazer P60I MSI Alpha 15 A3DD ( MS-16U6 ) MSI Alpha 15 A3DDK ( MS-16U6 ) MSI Alpha 15 A4DE ( MS-16UK ) MSI Alpha 15 A4DEK ( MS-16UK ) MSI Alpha 15 B5EEK ( MS-158L ) MSI Bravo 15 A4DCR ( MS-16WK ) MSI Bravo 15 A4DDR ( MS-16WK ) MSI Bravo 15 B5DD ( MS-158K ) MSI Bravo 15 B5ED ( MS-158M ) MSI Bravo 15 C7UCX ( MS-158N ) MSI Bravo 15 C7UCXK ( MS-158N ) MSI Bravo 15 C7UDX ( MS-158N ) MSI Bravo 15 C7UDXK ( MS-158N ) MSI Bravo 15 C7VE ( MS-158N ) MSI Bravo 15 C7VEK ( MS-158N ) MSI Bravo 15 C7VF ( MS-158N ) MSI Bravo 15 C7VFK ( MS-158N ) MSI Bravo 15 C7VFKP ( MS-158N ) MSI Crosshair 15 A11UCK ( MS-1582 ) MSI Crosshair 15 A11UEK ( MS-1581 ) MSI Crosshair 15 B12UEZ ( MS-1583 ) MSI Crosshair 15 B12UGSZ ( MS-1583 ) MSI Crosshair 15 B12UGZ ( MS-1583 ) MSI Crosshair 15 R6E B12UEZ ( MS-1583 ) MSI Cyborg 15 A12UC ( MS-15K1 ) MSI Cyborg 15 A12UCX ( MS-15K1 ) MSI Cyborg 15 A12UDX ( MS-15K1 ) MSI Cyborg 15 A12VE ( MS-15K1 ) MSI Cyborg 15 A12VF ( MS-15K1 ) MSI Cyborg 15 A13UC ( MS-15K1 ) MSI Cyborg 15 A13UDX ( MS-15K1 ) MSI Cyborg 15 A13VE ( MS-15K1 ) MSI Cyborg 15 A13VF ( MS-15K1 ) MSI GF63 Thin 9SCSR ( MS-16R4 ) MSI GF63 Thin 9SCXR ( MS-16R4 ) MSI GF63 Thin 10SC ( MS-16R5 ) MSI GF63 Thin 10SCSR ( MS-16R4 ) MSI GF63 Thin 10SCXR ( MS-16R4 ) MSI GF63 Thin 10UC ( MS-16R5 ) MSI GF63 Thin 10UD ( MS-16R5 ) MSI GF63 Thin 11SC ( MS-16R6 ) MSI GF63 Thin 11UC ( MS-16R6 ) MSI GF63 Thin 11UCX ( MS-16R6 ) MSI GF63 Thin 11UD ( MS-16R6 ) MSI GF65 Thin 9SD ( MS-16W1 ) MSI GF65 Thin 9SEXR ( MS-16W1 ) MSI GF65 Thin 10SCSXR ( MS-16W1 ) MSI GF65 Thin 10SDR ( MS-16W1 ) MSI GF65 Thin 10SER ( MS-16W1 ) MSI GF65 Thin 10UE ( MS-16W2 ) MSI GL65 9SEX ( MS-16U1 ) MSI GL65 9SFK ( MS-16U1 ) MSI GL65 9SFX ( MS-16U1 ) MSI GL65 Leopard 9SCSR ( MS-16U8 ) MSI GL65 Leopard 9SCXK ( MS-16U8 ) MSI GL65 Leopard 9SCXR ( MS-16U8 ) MSI GL65 Leopard 9SDK ( MS-16U7 ) MSI GL65 Leopard 9SDR ( MS-16U7 ) MSI GL65 Leopard 10SCSK ( MS-16U8 ) MSI GL65 Leopard 10SCSR ( MS-16U8 ) MSI GL65 Leopard 10SCXK ( MS-16U8 ) MSI GL65 Leopard 10SCXR ( MS-16U8 ) MSI GL65 Leopard 10SDK ( MS-16U7 ) MSI GL65 Leopard 10SDR ( MS-16U7 ) MSI GL65 Leopard 10SEK ( MS-16U7 ) MSI GL65 Leopard 10SER ( MS-16U7 ) MSI GL65 Leopard 10SFK ( MS-16U7 ) MSI GL65 Leopard 10SFR ( MS-16U7 ) MSI GP65 Leopard 10SDK ( MS-16U7 ) MSI GP65 Leopard 10SEK ( MS-16U7 ) MSI GP65 Leopard 10SFK ( MS-16U7 ) MSI GP65 Leopard 10SFSK ( MS-16U7 ) MSI GS65 Stealth 9SD ( MS-16Q4 ) MSI GV15 Thin 11SCV ( MS-16R6 ) MSI Katana 15 B12UCXK ( MS-1585 ) MSI Katana 15 B12UDXK ( MS-1585 ) MSI Katana 15 B12VEK ( MS-1585 ) MSI Katana 15 B12VFK ( MS-1585 ) MSI Katana 15 B12VGK ( MS-1585 ) MSI Katana 15 B13UCXK ( MS-1585 ) MSI Katana 15 B13UDXK ( MS-1585 ) MSI Katana 15 B13VEK ( MS-1585 ) MSI Katana 15 B13VFK ( MS-1585 ) MSI Katana 15 B13VGK ( MS-1585 ) MSI Katana GF66 11SC ( MS-1582 ) MSI Katana GF66 11UC ( MS-1582 ) MSI Katana GF66 11UD ( MS-1582 ) MSI Katana GF66 11UE ( MS-1581 ) MSI Katana GF66 11UG ( MS-1581 ) MSI Katana GF66 12UC ( MS-1584 ) MSI Katana GF66 12UCK ( MS-1584 ) MSI Katana GF66 12UCO ( MS-1584 ) MSI Katana GF66 12UCOK ( MS-1584 ) MSI Katana GF66 12UD ( MS-1584 ) MSI Katana GF66 12UDK ( MS-1584 ) MSI Katana GF66 12UDO ( MS-1584 ) MSI Katana GF66 12UDOK ( MS-1584 ) MSI Katana GF66 12UE ( MS-1583 ) MSI Katana GF66 12UEK ( MS-1583 ) MSI Katana GF66 12UEO ( MS-1583 ) MSI Katana GF66 12UEOK ( MS-1583 ) MSI Katana GF66 12UG ( MS-1583 ) MSI Katana GF66 12UGS ( MS-1583 ) MSI Katana GF66 12UGSK ( MS-1583 ) MSI Katana GF66 12UGSO ( MS-1583 ) MSI Katana GF66 12UGSOK ( MS-1583 ) MSI Katana GF66 12UGSZOK ( MS-1583 ) MSI Pulse 15 B13VFK ( MS-1585 ) MSI Pulse 15 B13VGK ( MS-1585 ) MSI Pulse GL66 11UCK ( MS-1582 ) MSI Pulse GL66 11UDK ( MS-1582 ) MSI Pulse GL66 11UEK ( MS-1581 ) MSI Pulse GL66 11UGK ( MS-1581 ) MSI Pulse GL66 11UGKV ( MS-1581 ) MSI Pulse GL66 12UCK ( MS-1584 ) MSI Pulse GL66 12UDK ( MS-1584 ) MSI Pulse GL66 12UE ( MS-1583 ) MSI Pulse GL66 12UEK ( MS-1583 ) MSI Pulse GL66 12UEOK ( MS-1583 ) MSI Pulse GL66 12UGK ( MS-1583 ) MSI Pulse GL66 12UGKV ( MS-1583 ) MSI Pulse GL66 12UGSZK ( MS-1583 ) MSI Pulse GL66 12UGSZOK ( MS-1583 ) MSI Sword 15 A11SC ( MS-1582 ) MSI Sword 15 A11UC ( MS-1582 ) MSI Sword 15 A11UD ( MS-1582 ) MSI Sword 15 A11UE ( MS-1581 ) MSI Sword 15 A11UG ( MS-1581 ) MSI Sword 15 A12UC ( MS-1584 ) MSI Sword 15 A12UCX ( MS-1585 ) MSI Sword 15 A12UD ( MS-1584 ) MSI Sword 15 A12UDX ( MS-1585 ) MSI Sword 15 A12UE ( MS-1583 ) MSI Sword 15 A12UG ( MS-1583 ) MSI Sword 15 A12UGS ( MS-1583 ) MSI Sword 15 A12VE ( MS-1585 ) MSI Sword 15 A12VF ( MS-1585 ) MSI Thin 15 B12UC ( MS-16R8 ) MSI Thin 15 B12UCX ( MS-16R8 ) MSI Thin 15 B12UDX ( MS-16R8 ) MSI Thin 15 B12VE ( MS-16R8 ) MSI Thin 15 B12VF ( MS-16R8 ) MSI Thin 15 B13UC ( MS-16R8 ) MSI Thin 15 B13UCX ( MS-16R8 ) MSI Thin 15 B13UDX ( MS-16R8 ) MSI Thin 15 B13VE ( MS-16R8 ) MSI Thin 15 B13VF ( MS-16R8 ) MSI Thin GF63 12HW ( MS-16R7 ) MSI Thin GF63 12UC ( MS-16R8 ) MSI Thin GF63 12UCX ( MS-16R8 ) MSI Thin GF63 12UDX ( MS-16R8 ) MSI Thin GF63 12VE ( MS-16R8 ) MSI Thin GF63 12VF ( MS-16R8 ) MSI Thin GF63 13UC ( MS-16R8 ) MSI WF66 11UI ( MS-1582 ) MSI GP66 LEOPARD 10UE SERIES MSI GP66 LEOPARD 10UG SERIES MSI GP66 LEOPARD 11UH SERIES Asus FX507ZU4 Asus FX507VV4 Asus FA507NVR Asus FA507NUR Asus 90NR0CJ8-R7AM10 Asus 90NR09M1-R7BP10 Asus FA507XQ Asus 9A07CQ0003TW Asus 48BKXLBJN00 Asus 90NR03L0-R7B011 Asus 90NR03L0-R7B010

Description

Product Description

NV156FHM-NX1 LCD screen panel – a high‑quality LCD panel designed for laptops, delivering crisp visuals and accurate color reproduction.

Key specifications:

Screen Size: 15.6 – measured diagonally; verify it matches your bezel cutout.
Resolution: 1920(RGB)×1080, 16:9, FHD – ensure your GPU supports this resolution (e.g., 4K requires eDP 40‑pin).
Refresh Rate: 120HZ – higher refresh rates (≥120Hz) require compatible cable and GPU.
Interface: EDP 40 pin, Width: 1.0 inch (25mm), Pitch: 0.5mm – connector type and pin count (e.g., eDP 30‑pin 0.5mm).
Touchscreen: No – if Yes, your motherboard and cable must support touch digitizer.
Condition: Grade A+ – condition of the panel.
Model/PN: NV156FHM-NX1 – compare with the part number on your original screen.

Compatibility: Guaranteed fit for . Double‑check the connector width and pitch before installation.

Installation tip: Handle the screen by the edges, avoid touching the glass, and route the cable carefully through the hinge to prevent pinching.

Warranty & Support: All products come with a 7‑day return policy and free technical support. If you have any compatibility questions, contact our team at info@pcspare.com.

SKU: LT-7835 | Last updated: 2026-09-18 10:17:23

Internal Structure Diagram Search and view the internal structure of this part

LCD Panel — Layer Structure

Frequently Asked Questions & Solutions

What are the resolution and refresh rate of this screen?

Resolution: 1920(RGB)×1080, 16:9, FHD | Refresh Rate: 120HZ.

Important considerations:

Your laptop's graphics chip (GPU) must support this resolution and refresh rate. For example, 4K (3840x2160) requires a GPU with DisplayPort 1.2 or higher, and the LCD cable must have sufficient bandwidth (typically 40‑pin eDP).
If your original screen was 1366x768 and you install a 1920x1080 panel, the system may work but the BIOS/EDID must recognise the new resolution – some older laptops are locked to the original resolution.
High refresh rates (e.g., 144Hz) require a compatible cable and graphics output – ensure your laptop supports it.

If you are upgrading to a higher resolution, we recommend checking your laptop's service manual or online forums for confirmed compatibility.

What interface does this screen use, and what are the connector details?

Common interface types for reference:

eDP 30 pin, Narrow: Width 0.67 inch (17mm), Pitch 0.4mm – common in ultra‑thin laptops.
eDP 30 pin, Standard: Width 0.75 inch (19mm), Pitch 0.5mm – common in standard 14″–15.6″ models.
eDP 40 pin, Narrow: Width 0.79 inch (20mm) or 0.83 inch (21mm), Pitch 0.4mm – used for 4K and high‑refresh panels.
eDP 40 pin, Standard: Width 1.0 inch (25mm), Pitch 0.5mm – used in larger gaming laptops.
LVDS 40 pin: Width 1.0 inch (25mm), Pitch 0.5mm – older interface, limited bandwidth.

How to verify: Check the connector on your original screen – look for printed labels (e.g., "30P 0.4mm") or measure with a ruler. Compare with our product photos.

If you are unsure, send us a clear photo of your original screen's connector – we can match it for you.

What is the physical size of this screen?

Screen size: 15.6 (measured diagonally).

Important: Even a 0.1‑inch difference can make the panel not fit in your bezel or the mounting holes may not align. Always measure your current screen's active area (visible portion) and outer dimensions (including the mounting tabs).

Additionally, check the aspect ratio – most modern laptops use 16:9, but some use 16:10 (which is slightly taller). A 16:10 screen in a 16:9 bezel will not fit physically, and vice versa.

How to measure: Remove the screen from the laptop and measure the diagonal of the active area (from corner to corner). Also measure the width and height of the entire panel (including the metal frame). Compare these numbers with our product specifications.

Is this a touchscreen?

Touch support: No. This is a standard (non‑touch) panel.

It will work in any laptop that accepts a non‑touch screen. If your laptop originally had a touchscreen, installing this non‑touch panel will result in lost touch functionality (but the display will still work). You may also need to use a non‑touch LCD cable.

What is the grade/condition of this screen?

Grade: Grade A+.

Understanding LCD grades:

Grade A+ (New): Brand new, flawless panel, zero dead pixels, uniform brightness – the highest quality.
Grade A (New compatible): New, but may have minor cosmetic variations (e.g., slightly different backlight uniformity) – rarely noticeable.
Grade B (Used/Refurbished): May have a few (<5) dead pixels or minor scratches that do not affect performance – suitable for budget repairs.

We ship all screens in the grade stated on the product page. All screens are tested for functionality – no lines, no flickering, and backlight is working.

If you require a specific grade, please check the product description or contact us before ordering.

Does this screen have any dead pixels or defects?

All our LCD screens are strictly tested before shipping. They are guaranteed to be free of dead pixels, bright dots, and lines at the time of shipment.

What to do if you find defects after installation:

Check if the issue is caused by a loose cable – reseat the LCD cable on both ends.
Test the screen on another compatible laptop (if possible) to isolate the issue.
If the defects are clearly on the panel (e.g., a cluster of dead pixels or a visible scratch), contact our support within 7 days with photos – we will arrange a replacement or refund.

Our warranty covers manufacturing defects only – physical damage during installation is not covered.

Where is the screen physically located, and how is it attached?

The LCD screen is located inside the display lid (A Cover + B Cover) of the laptop. It is attached as follows:

To the A Cover (top lid): The screen is usually screwed onto the A Cover using 4‑8 small screws around the edges. Some models use adhesive tape or a metal frame instead of screws.
Behind the B Cover (bezel): The bezel covers the front of the screen – it must be removed first to access the screen.
The LCD cable connects from the back of the screen (or bottom edge) to the motherboard, passing through the hinge.
The screen also has a backlight cable (sometimes integrated with the main cable) that supplies power to the LED backlight.

Accessing the screen requires removing the bezel – some models also require removing the entire display assembly (lid) from the base to avoid damaging cables.

How do I connect the LCD cable to the screen and motherboard?

The connection involves two ends:

Screen end: The cable plugs into a connector on the back of the LCD panel (or at the bottom edge). This is typically a ZIF (Zero Insertion Force) connector. To connect:
- Flip up the small locking tab on the screen connector.
- Insert the cable with the gold contacts facing up (toward the tab) – the cable is often marked with a blue or red stripe to indicate pin 1.
- Press the tab down firmly to lock.
Motherboard end: The cable plugs into a header on the system board, usually labelled LCD, LVDS, eDP, or J_LCD. The procedure is the same – lift the ZIF tab, insert the cable correctly, and lock.

Critical: The cable must be inserted all the way – if it is not fully seated, you will get a partial display or no image. Do not force the cable; if it does not go in easily, check the orientation.

Always disconnect the battery before connecting or disconnecting the LCD cable to avoid short circuits.

How to replace the LCD screen step by step?

Note: This is a delicate operation – proceed with caution. If you are not confident, consider using a professional repair service.

Preparation: Power off the laptop, disconnect the AC adapter, and remove the battery (if removable). Work on a clean, soft surface.
Remove the bezel (B Cover):
- Use a plastic spudger or guitar pick to gently pry the bezel off – start from the inner edge (near the screen) and work your way around.
- Some bezels are secured with adhesive – apply low heat (hair dryer) to soften the glue.
- Be careful not to bend or crack the bezel – it is often thin and fragile.
Disconnect the old screen:
- Locate the LCD cable connector on the back of the screen (or at the bottom). Release the ZIF tab and gently pull the cable out.
- If there is a separate backlight cable, disconnect it as well.
- Remove the mounting screws (usually 4‑6) securing the screen to the A Cover.
- Lift the screen out carefully – avoid flexing it.
Install the new screen:
- Place the new screen in the same position – align the screw holes.
- Insert and tighten the mounting screws evenly – do not overtighten.
- Connect the LCD cable – insert it fully into the ZIF connector and lock the tab. Ensure the cable is not twisted or pinched.
- If your screen has a separate backlight cable, connect it as well.
Reattach the bezel:
- Press the bezel back into place – start from one corner and work around, ensuring all clips snap.
- If adhesive was used, apply new adhesive tape or use the original adhesive (if still sticky).
Test before full reassembly:
- Reconnect the battery and power on the laptop – check for proper display (no lines, flickering, or dead pixels).
- Test the brightness adjustment and if touchscreen, test touch functionality.
If everything works, power off, disconnect the battery, and reassemble any remaining covers.

Common pitfalls to avoid:

Forgetting to connect the cable before mounting the screen – you will need to redo the steps.
Pinching the LCD cable in the hinge area – route it carefully exactly as the original.
Using screws that are too long – they can damage the screen or the A Cover.
Not removing all old adhesive – this can cause the bezel to sit unevenly.

Watch our installation video or consult your laptop's service manual for model‑specific details.

What precautions should I take, and what if the screen does not work after installation?

Critical precautions:

Always disconnect the battery before handling any screen or cable – the LCD backlight can carry high voltage (up to 40V) and can damage the inverter or GPU.
Handle the screen by the edges – avoid touching the glass surface or the gold contacts on the cable.
Never bend or flex the screen – the glass can crack easily.
Use ESD protection – wear an anti‑static wrist strap or touch a grounded metal object before touching components.
Do not over‑tighten screws – screen frames are delicate; snug is enough.
Keep the screen clean – any dust or fingerprints on the inner surface will be visible when the backlight is on.

Troubleshooting – what if the screen does not work after installation?

No display (black screen):
- Check that the LCD cable is fully inserted and locked on both the screen and motherboard ends.
- Verify the laptop is powered on (listen for fan or look for caps lock light).
- Test with an external monitor to confirm the laptop is outputting video – if external works, the issue is with the screen or cable.
- Inspect the cable for damage – a pinched cable can break internal traces.
Backlight is on but no image (blank white/grey screen):
- This usually indicates the video data lines are not connected – reseat the cable, check for bent pins on the connector.
- Verify that the screen is compatible with your laptop's interface (e.g., eDP vs LVDS).
Flickering or intermittent display:
- Check cable routing – it may be pinched in the hinge area.
- Ensure the cable is not pulled taut – there should be a slight slack.
Lines, artifacts, or distorted colours:
- Reseat the cable – sometimes a poor connection causes signal noise.
- If lines persist, the screen may be defective – contact support.
Touch not working (for touch screens):
- Confirm the digitizer cable (if separate) is connected.
- Install the correct touch driver – some laptops need a specific driver for the new panel.
- Check BIOS settings – some laptops have a touch enable/disable option.
Brightness adjustment not working:
- Ensure the backlight cable (if separate) is connected.
- Check if the laptop’s brightness keys are functioning – if not, try reinstalling the graphics driver.
Screen is too dark or uneven backlight:
- This could be a backlight issue – ensure the connector is fully seated.
- If the screen is a different model, the brightness levels may be interpreted differently – adjust in the OS.

If you have tried all the above and the problem persists: Contact our support with photos of the screen issue and your laptop model – we will help diagnose and arrange a replacement if necessary.
