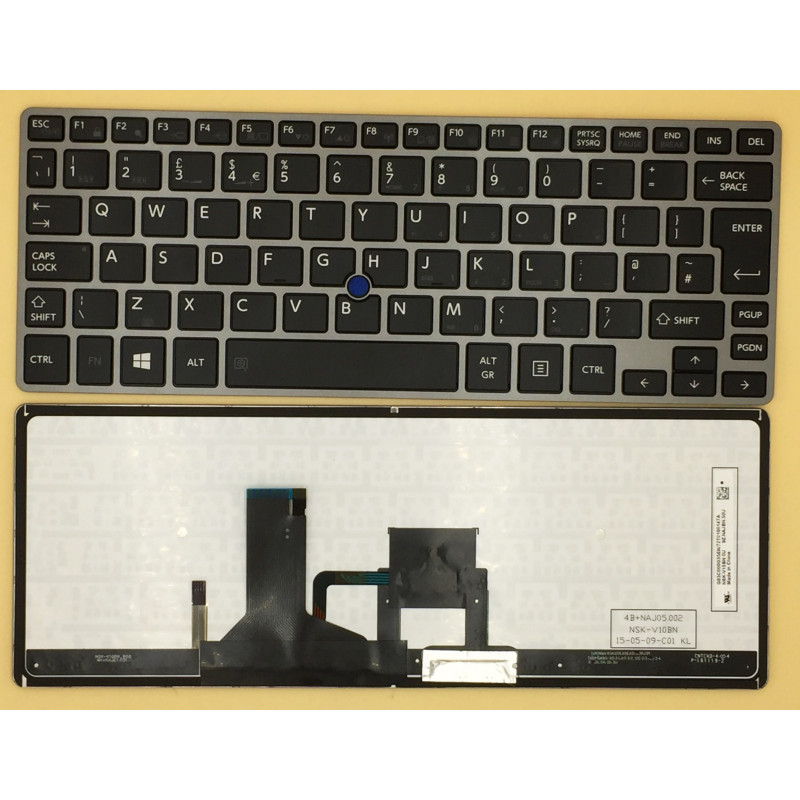

Keyboard for Toshiba Portege Z30-A, Z30T-A, Z30T-B, Z30-C, Z30-A1310, Z30-B, backlit

Q: What is the layout of this keyboard?

The layout of this keyboard is UK . Common layout types: US (United States): Standard QWERTY, wide horizontal Enter key, left Shift key is long, backslash key above Enter. UK (United Kingdom): QWERTY, tall vertical Enter key, left Shift key is shorter, backslash key near left Shift. DE (German): QWERTZ layout, with umlaut keys (ä, ö, ü). FR (French/AZERTY): AZERTY layout with specific French characters. JP (Japanese): QWERTY with additional keys for Japanese input (including Kana toggle). ES (Spanish): QWERTY with ñ key and specific accent keys. Important: Layouts are not interchangeable – the key positions, Enter key shape, and modifier key sizes vary. Installing a US keyboard on a UK laptop will result in some keys not matching the keycaps, and the operating system may map the keys incorrectly (though you can change the keyboard layout in software). How to verify: Check your original keyboard – look for the Enter key shape (wide horizontal vs tall vertical) and the position of the backslash key. If unsure, send us a photo of your original keyboard and we will confirm the layout.

Q: Does this keyboard support backlight?

Yes, this keyboard is backlit. Important compatibility notes: Your laptop must have a backlight connector on the motherboard – it is usually a separate 2‑pin or 4‑pin cable (often labelled KB_BL or J_BL ). If your laptop does NOT have a backlight connector, installing this keyboard will result in no backlight – the keys will still function normally, but they will not light up. Some laptops require a BIOS setting to enable backlight – check your laptop's BIOS or UEFI settings (usually under "Keyboard" or "System Configuration"). The backlight brightness is often controlled by Fn + F10 (or similar combination) – test this after installation. Connection: If your keyboard has a separate backlight cable, connect it to the designated motherboard header. If the backlight is integrated into the main ribbon cable, no additional connection is needed. If you are replacing a non‑backlit keyboard with a backlit one, make sure your laptop's motherboard has the necessary connector – otherwise the backlight will not work.

Q: What connector type does this keyboard use, and how do I install it correctly?

This keyboard uses a N/A interface (common types include ZIF, FPC, or ribbon cable with 0.5mm or 0.4mm pitch). Critical – connector orientation: When connecting the ribbon cable to the motherboard, ensure the metal contact pins face the correct direction (usually downward or upward depending on the ZIF latch type). Look at your original cable before removal and note the orientation – or take a photo for reference. Reversing the cable (inserting it upside‑down) can damage the connector or cause the keyboard to not function – in some cases, it can short‑circuit the motherboard. Always push the cable fully into the socket until it stops, then secure the locking latch (flip it down) before powering on. The cable should be straight – not twisted or folded near the connector. If the cable has a reinforcing strip (a thicker plastic piece at the end), ensure this strip is positioned correctly – it usually indicates the insertion depth and orientation. If you are unsure about the correct orientation, our installation video and photos can guide you – or contact our support for assistance.

Q: Is this keyboard compatible with my laptop?

This keyboard is designed for models matching Z30-B . To verify compatibility, please check the following: Laptop model number: Your laptop's full model number (e.g., "Dell Latitude 3540", "HP EliteBook 840 G5", "Lenovo ThinkPad T480") must match our product listing. Layout: Confirm the layout type (US, UK, DE, JP, etc.) matches your original keyboard. Connector type: The cable connector (pitch and pin count) must match the motherboard header. Frame type: Ensure the keyboard includes the frame type your laptop requires (metal frame vs. frame‑less). Backlight support: If you need backlight, ensure the keyboard is backlit and your motherboard has the backlight connector. Important note on model variants: Some laptop models have different keyboard variants depending on the region and configuration (e.g., some have backlit, some do not; some have a fingerprint reader, some do not). Always check your original keyboard's features before ordering. If you are unsure, contact our support with your laptop's exact model number and a photo of your original keyboard – we will confirm compatibility for you.

Q: Where is the keyboard physically located, and how is it attached?

The keyboard is located on the upper chassis (C Cover / Palmrest) of the laptop – it is the main input surface you type on. How the keyboard is attached (two common methods): Method 1 – From the top (keyboard side): The keyboard is inserted from the top of the C Cover . It is held in place by clips and/or screws accessed from the bottom of the palmrest. Removal requires prying the keyboard up from the top side – often using a spudger to release the clips. This is the most common method in modern laptops. Method 2 – From the bottom (D Cover side): The keyboard is secured by screws from the underside of the motherboard (you need to remove the bottom cover to access them). The keyboard drops out from the top once the screws are removed. This method is common in older or business‑class laptops (e.g., older ThinkPads). The keyboard connects to the motherboard via a ribbon cable that passes through a slot in the C Cover, plugging into a ZIF connector on the motherboard (usually labelled KEYBOARD , KBD , or J_KB ). Access: To replace the keyboard, you may need to remove the bottom cover (D Cover) or the bezel around the keyboard – depending on the model. Some laptops require removing the entire palmrest (C Cover). Always consult your laptop's service manual for the specific removal method – forcing the keyboard can damage the clips or the C Cover.

Popularity (2141 customers like it)

ID: PCS-10024828 Type: keyboard only Model/PN: Z30-B Layout: UK State: Discount Backlit: YES Condition: NEW

Availability: In Stock

‌EUR € 18.00

Qty

Bulk Quote

Guaranteed to fit your Keyboard Z30-B
Free step-by-step repair guide File
Tracked shipping & easy returns

Complete specifications for reference:
Toshiba Portege Z30-A Z30T-A Z30-A PT241C-002002 Z30-A PT241C-006002 Z30-A PT241C-00U002 Z30-A PT241C-00X045E1 Z30-A PT241C-02L002 Z30-A PT241C-04C002E1 Z30-A PT241C-04F045 Z30-A PT241C-0730C6 Z30-A PT241C-076002D1 Z30-A PT241C-09H0C6 Z30-A-006 Z30-A-00U Z30-A-108 Z30-A-10J Z30-A-10P Z30-A-10W Z30-A-10X Z30-A-10Z Z30-A-115 Z30-A-116 Z30-A-11G Z30-A-120 Z30-A-124 Z30-A-12N Z30-A-12P Z30-A-12Q Z30-A-12T Z30-A-12U Z30-A-12V Z30-A-12X Z30-A-130 Z30-A1300 Z30-A1301 Z30-A1302 Z30-A1310 Z30-A1320 Z30-A-136 Z30-A-138 Z30-A-13E Z30-A-13F Z30-A-13G Z30-A-13H Z30-A-13K Z30-A-13L Z30-A-13P Z30-A-13R Z30-A-13U Z30-A-13W Z30-A-13X Z30-A-140 Z30-A-141 Z30-A-143 Z30-A-146 Z30-A-14E Z30-A-14K Z30-A-14Q Z30-A-14Z Z30-A-152 Z30-A-159 Z30-A-15F Z30-A-15G Z30-A-15M Z30-A-15W Z30-A-163 Z30-A-16G Z30-A-16J Z30-A-16K Z30-A-16U Z30-A-17C Z30-A-17D Z30-A-17E Z30-A-17G Z30-A-17R Z30-A-180 Z30-A-181 Z30-A-182 Z30-A-183 Z30-A-186 Z30-A-188 Z30-A-189 Z30-A-18H Z30-A-18J Z30-A-18M Z30-A-18U Z30-A-18W Z30-A-18X Z30-A-191 Z30-A-192 Z30-A-197 Z30-A-199 Z30-A-19L Z30-A-19N Z30-A-1CC Z30-A-1CK Z30-A-1CN Z30-A-1CR Z30-A-1CT Z30-A-1CZ Z30-A-1D0 Z30-A-1D3 Z30-A-1D4 Z30-A-1D6 Z30-A-1D8 Z30-A-1DQ Z30-A-1DT Z30-A-1DU Z30-A-1DV Z30-A-1E1 Z30-A-1E2 Z30-A-1E3 Z30-A-1E4 Z30-A-1E5 Z30-A-1EL Z30-A-1ET Z30-A-1EX Z30-A-1F7 Z30-A-1FC Z30-A-1FD Z30-A-1FE Z30-A-1FL Z30-A-1FP Z30-A-1FQ Z30-A-1GD Z30-A-1GF Z30-A-1GJ Z30-A-1GL Z30-A-1GX Z30-A-1H2 Z30-A-1H3 Z30-A-1HR Z30-A-1HT Z30-A-1HU Z30-A-1HV Z30-A3101L Z30-A3201L Z30-ABT1300 Z30-A-M5S Z30-ASMBN22 Z30-ASMBNX1 Z30-ASMBNX2 Z30-ASMBNX3 Z30-ASMBNX4 Z30-AST3NX1 Z30-AST3NX2 Z30-AST3NX3 Z30-AST3NX4 Z30T-A PT24CC-05D02V Z30T-A-103 Z30T-A-107 Z30T-A-108 Z30T-A-10E Z30T-A-10L Z30T-A-10Q Z30T-A-10V Z30T-A-10X Z30T-A-111 Z30T-A-112 Z30T-A-11C Z30T-A-11D Z30T-A-11H Z30T-A-11N Z30T-A-11P Z30T-A-11R Z30T-A-11U Z30T-A-11W Z30T-A-121 Z30T-A-123 Z30T-A-125 Z30T-A-126 Z30T-A-127 Z30T-A-12F Z30T-A-12J Z30T-A1301 Z30T-A1301L Z30T-A1310 Z30T-A-189 Z30T-A-1CZ Z30T-A3101L Z30T-A3160SM Z30T-A3361SM Toshiba Portege Z30-B Z30T-B Z30-B-100 Z30-B-106 Z30-B-107 Z30-B-109 Z30-B-10D Z30-B-10E Z30-B-10G Z30-B-10K Z30-B-10M Z30-B-10Q Z30-B-10V Z30-B-110 Z30-B-111 Z30-B-112 Z30-B-113 Z30-B-114 Z30-B-116 Z30-B-117 Z30-B-118 Z30-B-119 Z30-B-11C Z30-B-11G Z30-B-11H Z30-B-11K Z30-B-11R Z30-B-11T Z30-B-11V Z30-B-11W Z30-B-11X Z30-B-12 Z30-B-120 Z30-B-121 Z30-B-127 Z30-B-12E Z30-B-12F Z30-B-12J Z30-B-12K Z30-B-12X Z30-B1310 Z30-B1320 Z30-B-133 Z30-B-13N Z30-B-145 Z30-B-14E Z30-B-14F Z30-B-14R Z30-B-14U Z30-B-14W Z30-B-14X Z30-B-14Z Z30-B-15L Z30-BSMBN22 Z30-BST3NX3 Z30-BST3NX5 Z30T-B Z30T-B-104 Z30T-B-108 Z30T-B-10C Z30T-B-10D Z30T-B-10E Z30T-B-10F Z30T-B-10H Z30T-B-10K Z30T-B-10L Z30T-B-10N Z30T-B-10U Z30T-B-10V Z30-B PT251C-00R012 Z30-B PT251C-00W012 Z30-B PT251C-00X012 Z30-B PT251C-01R03RVG Z30-B PT251C-04T03RE1 Z30-B PT251C-05H012 Z30-B PT251C-06K012 Z30-B PT251C-06L012 Z30-B PT253C-018019 Z30-B PT253C-0E7019 Z30-B PT253C-0H6019 Z30-BBT1300 Z30-BMZC002 Z30-BMZC004 Z30-BSMBN22 Z30-BSMBNX3 Z30-BSMBNX4 Z30-BST3NX3 Z30-BST3NX4 Z30-BST3NX5 Z30-BST3NX6 Z30-BT1300 Z30T-B1320W10 Z30T-B-10F Toshiba Portege Z30-C Z30T-C Z30-C PT261C-00E001 Z30-C PT261C-00F001 Z30-C PT261C-00G001 Z30-C PT261C-0D708K Z30-C PT261C-0D808K Z30-C PT261C-0DL001 Z30-C PT261C-0DM001 Z30-C PT261U-0JF031 Z30-C PT263A-0L200T Z30-C PT263C-01G003 Z30-C PT263C-0FP003 Z30-C PT263C-0RK05J Z30-C-10N Z30-C-10Q Z30-C-10V Z30-C-10W Z30-C-10Z Z30-C-122 Z30-C-124 Z30-C-125 Z30-C-12C Z30-C-12H Z30-C-12K Z30-C-12U Z30-C-12W Z30-C-12Z Z30-C-131 Z30-C-135 Z30-C-138 Z30-C-13C Z30-C-13E Z30-C-13G Z30-C-13H Z30-C-13T Z30-C-151 Z30-C-152 Z30-C-153 Z30-C-154 Z30-C-155 Z30-C-156 Z30-C-16H Z30-C-16L Z30-C-16M Z30-C-16N Z30-C-16W Z30-C-16Z Z30-C-170 Z30-C-173 Z30-C-176 Z30-C-177 Z30-C-178 Z30-C-17W Z30-C-184 Z30-C-186 Z30-C-188 Z30-C-18R Z30-C-18X Z30-C-190 Z30-C-191 Z30-C-193 Z30-C-19R Z30-C-1C3 Z30-C-1C9 Z30-C-1CR Z30-C-1CV Z30-C-1CW Z30-C-1D8 Z30-C-1DM Z30-C-1DN Z30-C-1EK Z30-C-1EL Z30-C-1EM Z30-C-1EN Z30T-C-10K Z30T-C-10Z Z30T-C-110 Z30T-C-119 Z30T-C-11G Z30T-C-11R Z30T-C-127 Z30T-C-12U Z30T-C-133 Z30T-C-136 Z30T-C-139 Z30T-C-14P Z30-C-16J PT263E-0PL04QEP Z30-C-16K PT263E-0PM04QEP Z30-C-16P PT263E-0PP04QEP Z30-C-1K6

Description

Keyboard — Exploded View

Frequently Asked Questions & Solutions

What is the layout of this keyboard?

The layout of this keyboard is UK.

Common layout types:

US (United States): Standard QWERTY, wide horizontal Enter key, left Shift key is long, backslash key above Enter.
UK (United Kingdom): QWERTY, tall vertical Enter key, left Shift key is shorter, backslash key near left Shift.
DE (German): QWERTZ layout, with umlaut keys (ä, ö, ü).
FR (French/AZERTY): AZERTY layout with specific French characters.
JP (Japanese): QWERTY with additional keys for Japanese input (including Kana toggle).
ES (Spanish): QWERTY with ñ key and specific accent keys.

Important: Layouts are not interchangeable – the key positions, Enter key shape, and modifier key sizes vary. Installing a US keyboard on a UK laptop will result in some keys not matching the keycaps, and the operating system may map the keys incorrectly (though you can change the keyboard layout in software).

How to verify: Check your original keyboard – look for the Enter key shape (wide horizontal vs tall vertical) and the position of the backslash key. If unsure, send us a photo of your original keyboard and we will confirm the layout.

Does this keyboard support backlight?

Yes, this keyboard is backlit.

Important compatibility notes:

Your laptop must have a backlight connector on the motherboard – it is usually a separate 2‑pin or 4‑pin cable (often labelled KB_BL or J_BL).
If your laptop does NOT have a backlight connector, installing this keyboard will result in no backlight – the keys will still function normally, but they will not light up.
Some laptops require a BIOS setting to enable backlight – check your laptop's BIOS or UEFI settings (usually under "Keyboard" or "System Configuration").
The backlight brightness is often controlled by Fn + F10 (or similar combination) – test this after installation.

Connection: If your keyboard has a separate backlight cable, connect it to the designated motherboard header. If the backlight is integrated into the main ribbon cable, no additional connection is needed.

If you are replacing a non‑backlit keyboard with a backlit one, make sure your laptop's motherboard has the necessary connector – otherwise the backlight will not work.

What connector type does this keyboard use, and how do I install it correctly?

This keyboard uses a N/A interface (common types include ZIF, FPC, or ribbon cable with 0.5mm or 0.4mm pitch).

Critical – connector orientation:

When connecting the ribbon cable to the motherboard, ensure the metal contact pins face the correct direction (usually downward or upward depending on the ZIF latch type).
Look at your original cable before removal and note the orientation – or take a photo for reference.
Reversing the cable (inserting it upside‑down) can damage the connector or cause the keyboard to not function – in some cases, it can short‑circuit the motherboard.
Always push the cable fully into the socket until it stops, then secure the locking latch (flip it down) before powering on.
The cable should be straight – not twisted or folded near the connector.

If the cable has a reinforcing strip (a thicker plastic piece at the end), ensure this strip is positioned correctly – it usually indicates the insertion depth and orientation.

If you are unsure about the correct orientation, our installation video and photos can guide you – or contact our support for assistance.

Are there any physical differences I should check before buying?

Yes – please verify the following physical attributes to ensure a perfect fit:

Frame (metal/plastic backing):
- Some keyboards come with a metal reinforcement frame that screws into the chassis.
- Others are frame‑less and held by clips/adhesive.
- Check if your original keyboard has a frame – if not, you may need to transfer your existing frame. Our product description indicates has frame: N/A – compare with your original.
Enter key shape:
- US layout: Wide horizontal Enter key (often called "ANSI Enter").
- UK / EU layout: Tall vertical Enter key (often called "ISO Enter").
- These are not interchangeable – the chassis has a cutout for the specific shape.
Keycap profile: Some keyboards have a different keycap curvature – while rare, some high‑end laptops use custom key shapes (e.g., Lenovo ThinkPad has a distinctive concave key cap).
Color / finish: This keyboard is Black – ensure it matches your laptop’s aesthetic. Some models come in silver or white.
Screw hole positions: The mounting points (screw holes or clips) must align with your chassis – compare your original keyboard's backside with our product photos.
Touchpad integration: Some keyboards are part of a larger palmrest assembly – these are not standalone keyboards. Ensure you are buying the correct part type.

Part number (PN) check: The PN on the back of the keyboard may differ from your original, but we guarantee full compatibility if the model and layout match. If you are unsure, send us a photo of the back of your original keyboard (showing the PN sticker) and we will confirm.

Is this keyboard compatible with my laptop?

This keyboard is designed for models matching Z30-B.

To verify compatibility, please check the following:

Laptop model number: Your laptop's full model number (e.g., "Dell Latitude 3540", "HP EliteBook 840 G5", "Lenovo ThinkPad T480") must match our product listing.
Layout: Confirm the layout type (US, UK, DE, JP, etc.) matches your original keyboard.
Connector type: The cable connector (pitch and pin count) must match the motherboard header.
Frame type: Ensure the keyboard includes the frame type your laptop requires (metal frame vs. frame‑less).
Backlight support: If you need backlight, ensure the keyboard is backlit and your motherboard has the backlight connector.

Important note on model variants: Some laptop models have different keyboard variants depending on the region and configuration (e.g., some have backlit, some do not; some have a fingerprint reader, some do not). Always check your original keyboard's features before ordering.

If you are unsure, contact our support with your laptop's exact model number and a photo of your original keyboard – we will confirm compatibility for you.

Where is the keyboard physically located, and how is it attached?

The keyboard is located on the upper chassis (C Cover / Palmrest) of the laptop – it is the main input surface you type on.

How the keyboard is attached (two common methods):

Method 1 – From the top (keyboard side):
- The keyboard is inserted from the top of the C Cover.
- It is held in place by clips and/or screws accessed from the bottom of the palmrest.
- Removal requires prying the keyboard up from the top side – often using a spudger to release the clips.
- This is the most common method in modern laptops.
Method 2 – From the bottom (D Cover side):
- The keyboard is secured by screws from the underside of the motherboard (you need to remove the bottom cover to access them).
- The keyboard drops out from the top once the screws are removed.
- This method is common in older or business‑class laptops (e.g., older ThinkPads).

The keyboard connects to the motherboard via a ribbon cable that passes through a slot in the C Cover, plugging into a ZIF connector on the motherboard (usually labelled KEYBOARD, KBD, or J_KB).

Access: To replace the keyboard, you may need to remove the bottom cover (D Cover) or the bezel around the keyboard – depending on the model. Some laptops require removing the entire palmrest (C Cover).

Always consult your laptop's service manual for the specific removal method – forcing the keyboard can damage the clips or the C Cover.

How do I identify the motherboard keyboard connector and connect the cable?

The keyboard cable plugs into a dedicated header on the motherboard. It is usually located near the edge of the motherboard (closest to the keyboard area). Common silkscreen markings include:

KEYBOARD / KBD
J_KB / J_KEYB
KB1 / KBC (Keyboard Controller)
EKB (Embedded Keyboard)

Connection procedure:

Identify the ZIF (Zero Insertion Force) connector on the motherboard – it usually has a small brown or black locking flap.
Flip up the locking flap (gently, with a fingernail or spudger).
Insert the keyboard ribbon cable into the slot – ensure the metal contact pins face the correct direction (usually facing away from the flap or facing towards the flap – check your original cable orientation).
Push the cable all the way in – it should not have any slack.
Press the locking flap down to secure the cable – you should feel a click.

If the keyboard has a separate backlight cable:

This cable plugs into a separate connector on the motherboard – usually labelled KB_BL, J_BL, or BACKLIGHT.
It is often a 2‑pin connector – connect it with the correct polarity (the red wire is usually positive).
Not all laptops have this connector – if yours does not, the backlight will not work.

Do not force the cable – if it does not go in easily, check the orientation. Bent pins on the motherboard header can be difficult to repair.

How to replace the keyboard step by step?

Note: Keyboard replacement methods vary by laptop model. The steps below are general – refer to your laptop's service manual for model‑specific instructions.

Step 1: Preparation

Power off the laptop, disconnect the AC adapter, and remove the battery (if removable).
Press the power button for 5 seconds to discharge residual power.
Work on a clean, soft surface.
Have a plastic spudger and a small Phillips screwdriver ready.
Take photos of the keyboard and cable routing before you start.

Step 2: Remove the old keyboard

For top‑mount keyboards (most common):

Remove the bottom cover (D Cover) and locate the screws securing the keyboard (usually marked with a keyboard icon on the motherboard or bottom cover).
Remove these screws – the keyboard should now be free from the bottom.
From the top side, gently pry the keyboard up using a plastic spudder – start from the top edge (near the screen) and work around the clips.
Lift the keyboard slightly and disconnect the ribbon cable from the motherboard (flip up the ZIF latch, pull the cable out).
If there is a separate backlight cable, disconnect it as well.

For bottom‑mount keyboards:

Remove the bottom cover (D Cover).
Remove all screws securing the keyboard from the underside (they are usually clearly visible).
Push the keyboard up from the bottom – it will pop out from the top side.
Disconnect the ribbon cable and backlight cable from the motherboard.

Step 3: Transfer components (if needed)

If your new keyboard does not include a metal frame but your original did, transfer the frame from the old keyboard to the new one.
Ensure the frame is seated correctly and all screw holes align.

Step 4: Install the new keyboard

Connect the ribbon cable to the motherboard first (before placing the keyboard in position) – this is easier and avoids pulling the cable later.
Ensure the cable is fully inserted and the ZIF latch is locked.
If there is a backlight cable, connect it to the backlight header.
Place the keyboard into the chassis – align the clips or screw holes.
Press the keyboard down firmly to engage all clips (you should hear them click).
Secure the keyboard from the bottom (if screws are used) – do not over‑tighten.

Step 5: Test before full reassembly

Reconnect the battery briefly, power on the laptop.
Test every key – use a keyboard testing website or Notepad to check all keys (including Fn keys, arrow keys, and special characters).
If backlit, test the backlight function (Fn + brightness key).
If all works, power off and disconnect the battery.

Step 6: Reassemble

Reattach the bottom cover (D Cover) and all screws.
Replace the battery and AC adapter.

Common mistakes to avoid:

Forgetting to connect the cable before fully placing the keyboard – you may need to remove it again.
Inserting the ribbon cable upside‑down – always note the original orientation.
Using excessive force when prying the keyboard – this can break the clips or crack the C Cover.
Losing small screws – use a magnetic tray to keep them organized.

If you are unsure about any step, watch our installation video or consult your laptop's service manual.

What precautions should I take, and what if some keys do not work after installation?

Critical precautions:

Always disconnect the battery before handling the keyboard cable – the keyboard controller can be damaged by static or residual power.
Handle the ribbon cable gently – it is fragile. Do not bend it sharply or pull on it.
Do not touch the gold contacts on the ribbon cable – fingerprints or oil can cause poor contact.
Use the correct screws – keyboard screws are often shorter than others. Using a longer screw can puncture the keyboard membrane or damage the chassis.
Avoid spilling liquids – a spill can damage the keyboard membrane.
Check the cable routing – ensure the cable is not pinched by the chassis or any other component.

Troubleshooting after installation:

No keys work at all:
- The ribbon cable may be loose or upside‑down – reseat it carefully, ensuring the metal contacts face the correct direction.
- Check if the ZIF latch is fully locked – if it is not, the cable will not make proper contact.
- Inspect the cable for damage (tears or bent contacts).
- If the cable is damaged, you may need a replacement.
Some specific keys do not work:
- Check for debris or dust under the keycaps – use compressed air to clean.
- If the same key on multiple rows is not working, the membrane circuit may be damaged – this could be a manufacturing defect.
- Test the keyboard on another laptop (if compatible) to isolate the issue.
Keys are sticky or hard to press:
- There may be debris under the keys – gently remove the keycap (if it is removable) and clean underneath.
- If the keyboard is new, some keys may feel stiffer initially – they should loosen with use.
Keyboard types wrong characters:
- Your operating system is set to a different layout – go to Settings → Time & Language → Language & Region, and select the correct keyboard layout (US, UK, DE, etc.).
- If the layout is correct but still typing wrong characters, the keyboard may be physically mislabeled – check the keycap markings against your expected layout.
Backlight does not work (for backlit keyboards):
- Verify the backlight cable is connected (if separate).
- Check the BIOS – some laptops have a backlight enable/disable setting.
- Check the Fn + brightness key – often Fn + F10 or Fn + spacebar.
- If your laptop originally did not have a backlight, the motherboard may lack the backlight connector – the keyboard will work, but the backlight will not.
Keyboard flexes or moves when typing:
- Some screws may be loose – recheck all keyboard screws.
- If the keyboard is clipped in, ensure all clips are fully engaged – press down firmly around the edges.

If the problem persists: Contact our support with details about which keys are not working and photos of your keyboard installation – we will help diagnose if the keyboard is defective or incompatible.

Do I need to install drivers or change settings for the new keyboard?

For most laptops, no driver installation is needed – keyboards are standard HID (Human Interface Device) and are automatically recognized by Windows, macOS, and Linux.

However, there are a few exceptions:

Special function keys: Some laptops (e.g., Dell, HP, Lenovo) have custom function keys (brightness, volume, airplane mode) that require the manufacturer's keyboard driver or utility software (e.g., Lenovo Hotkey Features, Dell Power Manager, HP System Control). If these keys do not work, download and install the latest driver from the manufacturer's support page.
BIOS update: Some newer keyboards require a BIOS update for full compatibility – especially if you are replacing a non‑backlit keyboard with a backlit one (or vice versa).
Keyboard layout: If the physical layout (US vs. UK) differs from your OS setting, you may need to change the input language in your operating system settings.
Fn key mapping: Some laptops have a Fn key that can be locked or unlocked via BIOS or software – check your laptop's documentation if the Fn key behaviour seems different.

Step‑by‑step for Windows users:

After installation, boot into Windows and check if all keys work.
If special keys (volume, brightness) do not work, go to the manufacturer's support website and download the keyboard driver or system utility.
Install the driver and restart the laptop.
If the keyboard layout is wrong, go to Settings → Time & Language → Language & Region → Preferred Language → Options → Add a keyboard, and select the correct layout.

If you are using Linux or macOS, the keyboard should work plug‑and‑play – you may only need to adjust the layout settings in the system preferences.

New arrive

MSI Claw A8 BZ2EM Fan original right

‌EUR € 15.75

MSI Claw A8 BZ2EM Fan original left

‌EUR € 15.75

B6506ASHNF2200TN Fan original

‌EUR € 10.80

BN95065S5H-006P Fan original

‌EUR € 15.30
