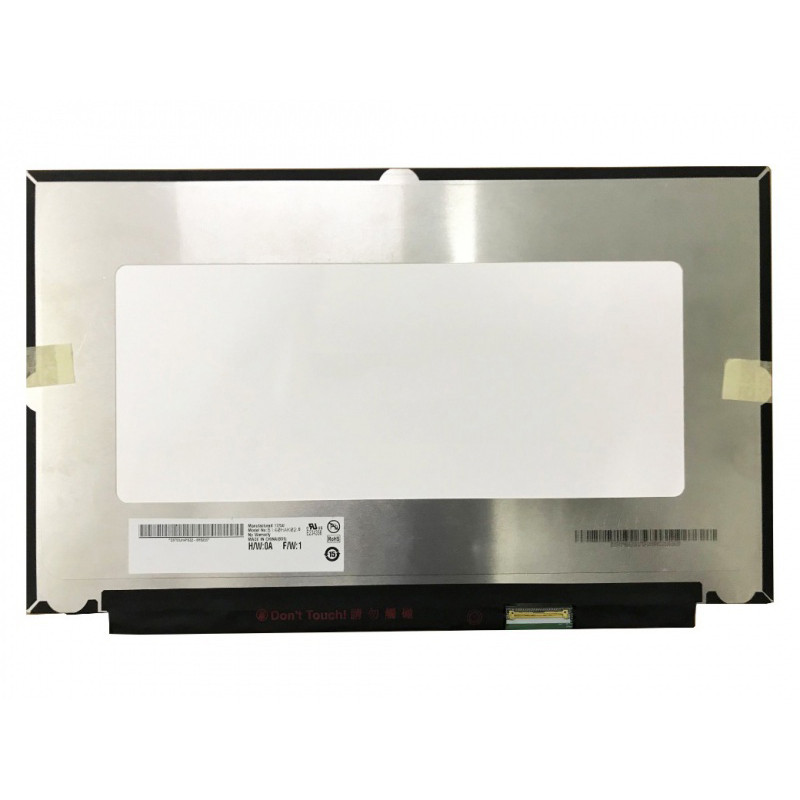

B140HAK03.2 touch LCD screen panel

Popularity (1236 customers like it)
PCS pcspare.com
ID: PCS-9154 Type: WLED display Size: 14.0 Model/PN: B140HAK03.2 Refresh Rate: 60HZ Resolution: 1920(RGB)×1080, 16:9, FHD Interface: EDP 40 pin Connector width: 25mm Pin pitch: 0.5mm Condition: Used, Like New Grade A+
Availability: In Stock
‌EUR € 49.50
Bulk Quote
  • Guaranteed to fit your Display Panel B140HAK03.2
  • Free step-by-step repair guide File
  • Tracked shipping & easy returns
Related Products
by NV133FHM-N69 on pcspare.com - Global Laptop Parts Center
NV133FHM-N69 ‌EUR € 45.00
by NV133FHM-N49 on pcspare.com - Global Laptop Parts Center
NV133FHM-N49 ‌EUR € 45.00

Complete specifications for reference:
AUO323D EDID AUO323D Lenovo 5D11D20975 Lenovo SBB0X86821 lenovo 5D11B48759 Lenovo 5D11C12739 lenovo 5D11B68428 Lenovo 5D10W46479 Lenovo 5D10W46480 Lenovo 5D11C95994 Lenovo SBB0U88967 Lenovo 5D10Z72100 AUO323D Lenovo SBB0U88967 Lenovo 5D10Z72100 Lenovo sd10q66945 Lenovo sd10q66945 SD10Q66940 Lenovo 02HL713 Lenovo sd10q66945 SD10Q66940 Lenovo 02HL713 SD10Q66940 Lenovo 01YN150 sd10q66945 Lenovo 01YN150 Lenovo 01YN150 SD10Q66940 sd10q66945 Lenovo 01YN150 Lenovo sd10q66945 SD10Q66940 Lenovo 01YN150 Lenovo SD10Q66941 lenovo 5D11B39776 5D11B48759 5D11C95994 5D11B64637 5D11B48759 5D11C95994 5D11B64637 5D11B68428 5D11C12739 5D10V82392 5D10W46479 5D10W46480 5D11A22491 5D11A24695 Lenovo 5D11B39778 5D11B39778 5D11D20975 5D11B39776 Lenovo ideapad 3 Chrome-14M836 - Type 82KN Lenovo 5D10W46479 Lenovo SBB0X86821 Lenovo 5D10W46480 Lenovo 5D11C95994 EDID AUO323D Lenovo T14s Gen 2 (Type 20WM 20WN) Laptop (ThinkPad) - Type 20WN screen Lenovo T14s (Type 20T0 20T1) Laptop (ThinkPad) Lenovo ThinkPad T490S T495S Lenovo ThinkPad T490S T495S Lenovo ThinkPad T490 T495 Lenovo ThinkPad T490S T495S Lenovo ThinkPad T490S T495S LENOVO T14 Gen 1 (type 20UD 20UE) Laptop (ThinkPad) - Type 20UE Lenovo ThinkPad T490 T495 T490s T495s P43s Lenovo P14s Gen 1 (type 20Y1 20Y2) Laptop (ThinkPad) - Type 20Y1 Lenovo Ideapad 3 Chrome-14M836 Lenovo 14e Chromebook Gen 2 Lenovo P14s Gen 2 Laptop (ThinkPad) 20VD ThinkBook 14 G2 ITL Laptop 20VF ThinkBook 14 G2 ARE Laptop 21A2 ThinkBook 14 G3 ACL Laptop 21A3 ThinkBook 14 G3 ITL Laptop 21DH ThinkBook 14 G4 IAP 21DK ThinkBook 14 G4 ABA Laptop 21JC ThinkBook 14 G5 IRL ThinkPad E14 Gen - (20TA 20TB) Laptop - 20TA004MUS ThinkPad E14 Gen - (20TA 20TB) Laptop - 20TACTO1WW ThinkPad E14 Gen - (20TA 20TB) Laptop - 20TAS0CQ00 ThinkPad E14 Gen - (20TA 20TB) Laptop - 20TAS0CS00 ThinkPad E14 Gen - (20TA 20TB) Laptop - 20TAZ8U1US ThinkPad E14 Gen - (21E3 21E4) Laptops - 21E3CTO1WW ThinkPad L14 (20U1 20U2) Laptops - 20U1CTO1WW ThinkPad L14 (20U1 20U2) Laptops - 20U1S1K100 ThinkPad L14 (20U1 20U2) Laptops - 20U2S08D00 14e Chromeboook Gen - (Lenovo) - 82M2000EAU Lenovo Chromebook 14 14e 2nd Gen (Touch) Lenovo CHROMEBOOK 14e gen 2 82M1 LENOVO 14E G2 82M182M2 14e Chromebook Gen 2 (Lenovo) 82MY IdeaPad 3 Chrome 14APO6

LCD Panel — Layer Structure

Top Polarizer TFT Glass Liquid Crystal CF Glass Bottom Polarizer Light Guide Plate LED FPC Driver ③ Glass ② Liquid ① Backlight ④ Polarizer How It Works Backlight → liquid crystal twists light → image forms on screen. Interface: eDP (modern) / LVDS (older) — must match. Check connector width and pin pitch — mismatched cables won't fit.

Frequently Asked Questions & Solutions

What are the resolution and refresh rate of this screen?

Resolution: 1920(RGB)×1080, 16:9, FHD | Refresh Rate: 60HZ.

Important considerations:
  • Your laptop's graphics chip (GPU) must support this resolution and refresh rate. For example, 4K (3840x2160) requires a GPU with DisplayPort 1.2 or higher, and the LCD cable must have sufficient bandwidth (typically 40‑pin eDP).
  • If your original screen was 1366x768 and you install a 1920x1080 panel, the system may work but the BIOS/EDID must recognise the new resolution – some older laptops are locked to the original resolution.
  • High refresh rates (e.g., 144Hz) require a compatible cable and graphics output – ensure your laptop supports it.

If you are upgrading to a higher resolution, we recommend checking your laptop's service manual or online forums for confirmed compatibility.

What interface does this screen use, and what are the connector details?

Interface: EDP 40 pin, Width: 1.0 inch (25mm), Pitch: 0.5mm
Connector width: 25mm – this is the physical width of the connector. Ensure your motherboard's socket has the same width – a mismatched width means the cable will not fit.
Pin pitch: 0.5mm – this is the distance between pins. Common pitches are 0.4mm and 0.5mm. They are not interchangeable – a 0.5mm cable will not fit a 0.4mm socket.

Common interface types for reference:
  • eDP 30 pin, Narrow: Width 0.67 inch (17mm), Pitch 0.4mm – common in ultra‑thin laptops.
  • eDP 30 pin, Standard: Width 0.75 inch (19mm), Pitch 0.5mm – common in standard 14″–15.6″ models.
  • eDP 40 pin, Narrow: Width 0.79 inch (20mm) or 0.83 inch (21mm), Pitch 0.4mm – used for 4K and high‑refresh panels.
  • eDP 40 pin, Standard: Width 1.0 inch (25mm), Pitch 0.5mm – used in larger gaming laptops.
  • LVDS 40 pin: Width 1.0 inch (25mm), Pitch 0.5mm – older interface, limited bandwidth.

How to verify: Check the connector on your original screen – look for printed labels (e.g., "30P 0.4mm") or measure with a ruler. Compare with our product photos.

If you are unsure, send us a clear photo of your original screen's connector – we can match it for you.

What is the physical size of this screen?

Screen size: 14.0 (measured diagonally).

Important: Even a 0.1‑inch difference can make the panel not fit in your bezel or the mounting holes may not align. Always measure your current screen's active area (visible portion) and outer dimensions (including the mounting tabs).

Additionally, check the aspect ratio – most modern laptops use 16:9, but some use 16:10 (which is slightly taller). A 16:10 screen in a 16:9 bezel will not fit physically, and vice versa.

How to measure: Remove the screen from the laptop and measure the diagonal of the active area (from corner to corner). Also measure the width and height of the entire panel (including the metal frame). Compare these numbers with our product specifications.

Is this a touchscreen?

Touch support: Yes. This is a touch‑compatible panel (includes the digitizer layer).

Requirements for touch to work:
  • Your laptop must have a touch‑compatible motherboard (with an extra connector for the digitizer, usually via USB or I²C).
  • The LCD cable must support touch – it will have extra pins beyond the video lines.
  • Your operating system must have the correct touch driver installed.
  • If any of these are missing, the screen will still display video but touch will not function.

If you are replacing a non‑touch screen with a touchscreen, you will also need to replace the LCD cable and possibly the bezel (which may have a different frame). We recommend checking your laptop's original configuration.

What is the grade/condition of this screen?

Grade: Used, Like New Grade A+.

Understanding LCD grades:
  • Grade A+ (New): Brand new, flawless panel, zero dead pixels, uniform brightness – the highest quality.
  • Grade A (New compatible): New, but may have minor cosmetic variations (e.g., slightly different backlight uniformity) – rarely noticeable.
  • Grade B (Used/Refurbished): May have a few (<5) dead pixels or minor scratches that do not affect performance – suitable for budget repairs.

We ship all screens in the grade stated on the product page. All screens are tested for functionality – no lines, no flickering, and backlight is working.

If you require a specific grade, please check the product description or contact us before ordering.

Does this screen have any dead pixels or defects?

All our LCD screens are strictly tested before shipping. They are guaranteed to be free of dead pixels, bright dots, and lines at the time of shipment.

What to do if you find defects after installation:
  • Check if the issue is caused by a loose cable – reseat the LCD cable on both ends.
  • Test the screen on another compatible laptop (if possible) to isolate the issue.
  • If the defects are clearly on the panel (e.g., a cluster of dead pixels or a visible scratch), contact our support within 7 days with photos – we will arrange a replacement or refund.

Our warranty covers manufacturing defects only – physical damage during installation is not covered.

Where is the screen physically located, and how is it attached?

The LCD screen is located inside the display lid (A Cover + B Cover) of the laptop. It is attached as follows:
  • To the A Cover (top lid): The screen is usually screwed onto the A Cover using 4‑8 small screws around the edges. Some models use adhesive tape or a metal frame instead of screws.
  • Behind the B Cover (bezel): The bezel covers the front of the screen – it must be removed first to access the screen.
  • The LCD cable connects from the back of the screen (or bottom edge) to the motherboard, passing through the hinge.
  • The screen also has a backlight cable (sometimes integrated with the main cable) that supplies power to the LED backlight.

Accessing the screen requires removing the bezel – some models also require removing the entire display assembly (lid) from the base to avoid damaging cables.

How do I connect the LCD cable to the screen and motherboard?

The connection involves two ends:
  • Screen end: The cable plugs into a connector on the back of the LCD panel (or at the bottom edge). This is typically a ZIF (Zero Insertion Force) connector. To connect:
    • Flip up the small locking tab on the screen connector.
    • Insert the cable with the gold contacts facing up (toward the tab) – the cable is often marked with a blue or red stripe to indicate pin 1.
    • Press the tab down firmly to lock.
  • Motherboard end: The cable plugs into a header on the system board, usually labelled LCD, LVDS, eDP, or J_LCD. The procedure is the same – lift the ZIF tab, insert the cable correctly, and lock.

Critical: The cable must be inserted all the way – if it is not fully seated, you will get a partial display or no image. Do not force the cable; if it does not go in easily, check the orientation.

Always disconnect the battery before connecting or disconnecting the LCD cable to avoid short circuits.

How to replace the LCD screen step by step?

Note: This is a delicate operation – proceed with caution. If you are not confident, consider using a professional repair service.

  1. Preparation: Power off the laptop, disconnect the AC adapter, and remove the battery (if removable). Work on a clean, soft surface.
  2. Remove the bezel (B Cover):
    • Use a plastic spudger or guitar pick to gently pry the bezel off – start from the inner edge (near the screen) and work your way around.
    • Some bezels are secured with adhesive – apply low heat (hair dryer) to soften the glue.
    • Be careful not to bend or crack the bezel – it is often thin and fragile.
  3. Disconnect the old screen:
    • Locate the LCD cable connector on the back of the screen (or at the bottom). Release the ZIF tab and gently pull the cable out.
    • If there is a separate backlight cable, disconnect it as well.
    • Remove the mounting screws (usually 4‑6) securing the screen to the A Cover.
    • Lift the screen out carefully – avoid flexing it.
  4. Install the new screen:
    • Place the new screen in the same position – align the screw holes.
    • Insert and tighten the mounting screws evenly – do not overtighten.
    • Connect the LCD cable – insert it fully into the ZIF connector and lock the tab. Ensure the cable is not twisted or pinched.
    • If your screen has a separate backlight cable, connect it as well.
  5. Reattach the bezel:
    • Press the bezel back into place – start from one corner and work around, ensuring all clips snap.
    • If adhesive was used, apply new adhesive tape or use the original adhesive (if still sticky).
  6. Test before full reassembly:
    • Reconnect the battery and power on the laptop – check for proper display (no lines, flickering, or dead pixels).
    • Test the brightness adjustment and if touchscreen, test touch functionality.
  7. If everything works, power off, disconnect the battery, and reassemble any remaining covers.

Common pitfalls to avoid:

  • Forgetting to connect the cable before mounting the screen – you will need to redo the steps.
  • Pinching the LCD cable in the hinge area – route it carefully exactly as the original.
  • Using screws that are too long – they can damage the screen or the A Cover.
  • Not removing all old adhesive – this can cause the bezel to sit unevenly.

Watch our installation video or consult your laptop's service manual for model‑specific details.

What precautions should I take, and what if the screen does not work after installation?

Critical precautions:

  • Always disconnect the battery before handling any screen or cable – the LCD backlight can carry high voltage (up to 40V) and can damage the inverter or GPU.
  • Handle the screen by the edges – avoid touching the glass surface or the gold contacts on the cable.
  • Never bend or flex the screen – the glass can crack easily.
  • Use ESD protection – wear an anti‑static wrist strap or touch a grounded metal object before touching components.
  • Do not over‑tighten screws – screen frames are delicate; snug is enough.
  • Keep the screen clean – any dust or fingerprints on the inner surface will be visible when the backlight is on.

Troubleshooting – what if the screen does not work after installation?

  • No display (black screen):
    • Check that the LCD cable is fully inserted and locked on both the screen and motherboard ends.
    • Verify the laptop is powered on (listen for fan or look for caps lock light).
    • Test with an external monitor to confirm the laptop is outputting video – if external works, the issue is with the screen or cable.
    • Inspect the cable for damage – a pinched cable can break internal traces.
  • Backlight is on but no image (blank white/grey screen):
    • This usually indicates the video data lines are not connected – reseat the cable, check for bent pins on the connector.
    • Verify that the screen is compatible with your laptop's interface (e.g., eDP vs LVDS).
  • Flickering or intermittent display:
    • Check cable routing – it may be pinched in the hinge area.
    • Ensure the cable is not pulled taut – there should be a slight slack.
  • Lines, artifacts, or distorted colours:
    • Reseat the cable – sometimes a poor connection causes signal noise.
    • If lines persist, the screen may be defective – contact support.
  • Touch not working (for touch screens):
    • Confirm the digitizer cable (if separate) is connected.
    • Install the correct touch driver – some laptops need a specific driver for the new panel.
    • Check BIOS settings – some laptops have a touch enable/disable option.
  • Brightness adjustment not working:
    • Ensure the backlight cable (if separate) is connected.
    • Check if the laptop’s brightness keys are functioning – if not, try reinstalling the graphics driver.
  • Screen is too dark or uneven backlight:
    • This could be a backlight issue – ensure the connector is fully seated.
    • If the screen is a different model, the brightness levels may be interpreted differently – adjust in the OS.

If you have tried all the above and the problem persists: Contact our support with photos of the screen issue and your laptop model – we will help diagnose and arrange a replacement if necessary.
