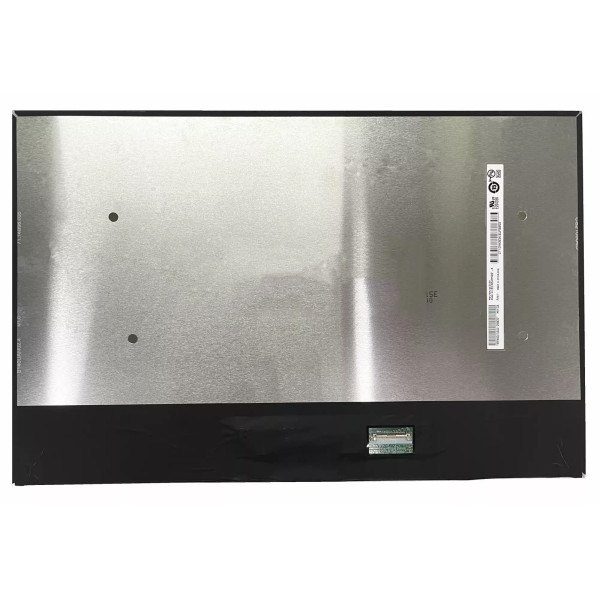

B140UAN02.4 LCD screen panel

Q: What are the resolution and refresh rate of this screen?

Resolution: 1920(RGB)×1200, 16:10, WUXGA | Refresh Rate: 60HZ . Important considerations: Your laptop's graphics chip (GPU) must support this resolution and refresh rate. For example, 4K (3840x2160) requires a GPU with DisplayPort 1.2 or higher, and the LCD cable must have sufficient bandwidth (typically 40‑pin eDP). If your original screen was 1366x768 and you install a 1920x1080 panel, the system may work but the BIOS/EDID must recognise the new resolution – some older laptops are locked to the original resolution. High refresh rates (e.g., 144Hz) require a compatible cable and graphics output – ensure your laptop supports it. If you are upgrading to a higher resolution, we recommend checking your laptop's service manual or online forums for confirmed compatibility.

Q: What interface does this screen use, and what are the connector details?

Interface: EDP 30 pin, Width: 0.75 inch (19mm), Pitch: 0.5mm Connector width: 19mm – this is the physical width of the connector. Ensure your motherboard's socket has the same width – a mismatched width means the cable will not fit. Pin pitch: 0.5mm – this is the distance between pins. Common pitches are 0.4mm and 0.5mm. They are not interchangeable – a 0.5mm cable will not fit a 0.4mm socket. Common interface types for reference: eDP 30 pin, Narrow: Width 0.67 inch (17mm), Pitch 0.4mm – common in ultra‑thin laptops. eDP 30 pin, Standard: Width 0.75 inch (19mm), Pitch 0.5mm – common in standard 14″–15.6″ models. eDP 40 pin, Narrow: Width 0.79 inch (20mm) or 0.83 inch (21mm), Pitch 0.4mm – used for 4K and high‑refresh panels. eDP 40 pin, Standard: Width 1.0 inch (25mm), Pitch 0.5mm – used in larger gaming laptops. LVDS 40 pin: Width 1.0 inch (25mm), Pitch 0.5mm – older interface, limited bandwidth. How to verify: Check the connector on your original screen – look for printed labels (e.g., "30P 0.4mm") or measure with a ruler. Compare with our product photos. If you are unsure, send us a clear photo of your original screen's connector – we can match it for you.

Q: What is the physical size of this screen?

Screen size: 14.0 (measured diagonally). Important: Even a 0.1‑inch difference can make the panel not fit in your bezel or the mounting holes may not align. Always measure your current screen's active area (visible portion) and outer dimensions (including the mounting tabs). Additionally, check the aspect ratio – most modern laptops use 16:9, but some use 16:10 (which is slightly taller). A 16:10 screen in a 16:9 bezel will not fit physically, and vice versa. How to measure: Remove the screen from the laptop and measure the diagonal of the active area (from corner to corner). Also measure the width and height of the entire panel (including the metal frame). Compare these numbers with our product specifications.

Q: Is this a touchscreen?

Touch support: No . This is a standard (non‑touch) panel. It will work in any laptop that accepts a non‑touch screen. If your laptop originally had a touchscreen, installing this non‑touch panel will result in lost touch functionality (but the display will still work). You may also need to use a non‑touch LCD cable.

Q: What is the grade/condition of this screen?

Grade: New Grade A+ . Understanding LCD grades: Grade A+ (New): Brand new, flawless panel, zero dead pixels, uniform brightness – the highest quality. Grade A (New compatible): New, but may have minor cosmetic variations (e.g., slightly different backlight uniformity) – rarely noticeable. Grade B (Used/Refurbished): May have a few ( We ship all screens in the grade stated on the product page. All screens are tested for functionality – no lines, no flickering, and backlight is working. If you require a specific grade, please check the product description or contact us before ordering.

Q: Does this screen have any dead pixels or defects?

All our LCD screens are strictly tested before shipping. They are guaranteed to be free of dead pixels, bright dots, and lines at the time of shipment. What to do if you find defects after installation: Check if the issue is caused by a loose cable – reseat the LCD cable on both ends. Test the screen on another compatible laptop (if possible) to isolate the issue. If the defects are clearly on the panel (e.g., a cluster of dead pixels or a visible scratch), contact our support within 7 days with photos – we will arrange a replacement or refund. Our warranty covers manufacturing defects only – physical damage during installation is not covered.

Q: Where is the screen physically located, and how is it attached?

The LCD screen is located inside the display lid (A Cover + B Cover) of the laptop. It is attached as follows: To the A Cover (top lid): The screen is usually screwed onto the A Cover using 4‑8 small screws around the edges. Some models use adhesive tape or a metal frame instead of screws. Behind the B Cover (bezel): The bezel covers the front of the screen – it must be removed first to access the screen. The LCD cable connects from the back of the screen (or bottom edge) to the motherboard, passing through the hinge. The screen also has a backlight cable (sometimes integrated with the main cable) that supplies power to the LED backlight. Accessing the screen requires removing the bezel – some models also require removing the entire display assembly (lid) from the base to avoid damaging cables.

Q: How do I connect the LCD cable to the screen and motherboard?

The connection involves two ends: Screen end: The cable plugs into a connector on the back of the LCD panel (or at the bottom edge). This is typically a ZIF (Zero Insertion Force) connector. To connect: Flip up the small locking tab on the screen connector. Insert the cable with the gold contacts facing up (toward the tab) – the cable is often marked with a blue or red stripe to indicate pin 1. Press the tab down firmly to lock. Motherboard end: The cable plugs into a header on the system board, usually labelled LCD , LVDS , eDP , or J_LCD . The procedure is the same – lift the ZIF tab, insert the cable correctly, and lock. Critical: The cable must be inserted all the way – if it is not fully seated, you will get a partial display or no image. Do not force the cable; if it does not go in easily, check the orientation. Always disconnect the battery before connecting or disconnecting the LCD cable to avoid short circuits.

Popularity (310 customers like it)

ID: PCS-10027605 Type: WLED display Size: 14.0 Model/PN: B140UAN02.4 Refresh Rate: 60HZ Resolution: 1920(RGB)×1200, 16:10, WUXGA Interface: EDP 30 pin Connector width: 19mm Pin pitch: 0.5mm Condition: New Grade A+

Availability: In Stock

‌EUR € 37.80

Qty

Bulk Quote

Guaranteed to fit your Display Panel B140UAN02.4
Free step-by-step repair guide File
Tracked shipping & easy returns

Complete specifications for reference:
HP N15079-001 HP N15078-001 HP N12878-001 HP N12879-001 HP N22326-001 HP M62320-J91 Hp N22325-001 HP N22328-001 EDID AUOA49A HP M62319-391 Dell TDVNC Dell 0TDVNC N15079-001 HP N50660-001 HP 845 G9 Dell y3c73 Dell 0y3c73 HP N13240-001 HP N13246-001 hp N13241-001 HP M62320-J91 EDID BOE0A2A HP N13243-001 HP N09532-001 HP N13244-001 HP ZB00K Firefly 14 G7 N22326-001 N22325-001 N22328-001 N50660-001 KL.14005.065 HP N13245-001 HP M74470-ND3 Dell 3T9GN Dell 03T9GN Dell 391-BHJE Dell NMVHC Dell P2DGM Dell 0P2DGM Dell 391-BHJM Dell G71Y3 0G71Y3 Dell 8GYDD EDID AUO7DA7 KL.1400D.037 KL.1400E.020 HP P05070-001 HP N59817-S91 Dell 05VKN 391-BJBH HP P04260-001 HP P06011-001 N98660-001 HP P04341-001 HP N59817-291 N98653-001 HP N98717-001 Dell DP/N YCR8T CN-0YCR8T Hp P06013-001 Dell R1HVR Dell 0R1HVR HP EliteBook 845 G9 HP EliteBook 1040 G9 HP EliteBook 845 G9 HP ZBook Firefly 14 G9 HP ZB00K Firefly 14 G7 HP EliteBook 840 G9 HP ZBook Power 15.6 inch G9 HP EliteBook 840 G10 Dell Inspiron 5425 5420 Dell Inspiron 14 5425 P157G004 N15079-001 HP N15079-001 HP EliteBook 845 14 inch G9 Dell inspiron 14 5425 HP EliteBook x360 1040 G9 HP Elite x360 1040 14 inch G9 HP ZB00K Firefly 14 G7 EliteBook 840 G9 EliteBook 845 G9 EliteBook 840 G10 ZBook Firefly 14 G9 ZBook Firefly 14 G10 HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U5AV) - 6H6V7PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U6AV) - 6A3X7PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U6AV) - 6E7T4PA HP ZBook Firefly 14 inch G10 Mobile Workstation PC (739M5AV) - 821B3PA HP ZBook Firefly 14 inch G10 Mobile Workstation PC (739M5AV) - 821B4PA HP EB845G9 R5-6650U 14 16GB/256 PC - 6X2M2PC HP EB845G9 R7-6850U 14 32GB/256 PC - 734U2UP HP EB845G9 R9-6950HS 14 32GB/1T LTEA PC - 6F6H6EA Acer TravelMate P4 (P414-52) P414-52 P414-41 HP Elite x360 1040 G9 HP Elitebook X360 1040 G9 i5-1245U 14 16GB/512 PC - 726C5PC Dell Latitude 7440 HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U5AV) - 6A3Z6PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U5AV) - 6A3Z7PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U6AV) - 6A3X6PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3U8AV) - 6Q9M9PA HP ZBook Firefly 14 inch G9 Mobile Workstation PC (4C3V1AV) - 6Q9N1PA HP ZFly14G9 i7-1255U 14 16GB/512 PC - 6B8J1EA HP ZBook Firefly 14 inch G10 Mobile Workstation PC (739L8AV) - 820Y1PA HP EB845G9 R5-6600U 14 16GB/256 PC - 6W497UA HP EB1040G9 i5-1245U 14 16GB/256 LTE5GPC - 7K0J7U8 HP EliteBook 1040 14 inch G9 Notebook PC (4B924AV) - 6F2Q5PA HP EliteBook 1040 14 inch G9 Notebook PC (4B926AV) - 5Z5E0EA HP EliteBook 1040 G9 - 6T254EA HP EliteBook 1040 14 inch G9 Notebook PC (4B924AV) - 6G995EC HP EliteBook 840 G11 A514-56M P414-52 A514-56M P414-41 HP ZBook Firefly 14 G11 A HP EliteBook 845 G11 HP EliteBook 845 G11 HP EliteBook 845 G11 HP EliteBook 845 G11 HP EliteBook 845 G11 HP EliteBook 645 G11 9G146ET HP EB845G11 R5-8540U 14 16GB/1T PC 9G1A6ET HP EB845G11 R5-8540U 14 16GB/1T PC A08N5AA HP EB845G11 R5-8540U 14 16GB/256 PC A44L9UA HP EB845G11 R5-8540U 14 16GB/256 PC A4UK3US HP EB845G11 R5-8540U 14 16GB/256 PC AG3K6EC HP EB845G11 R5-8540U 14 16GB/256 PC B05KLUC HP EB845G11 R5-8540U 14 16GB/256 PC B7JH9E8 HP EB845G11 R5-8540U 14 16GB/256 PC B7JH9E8R HP EB845G11 R5-8540U 14 16GB/256 PC A26QHEA HP EB845G11 R5-8540U 14 16GB/512 LTEA PC 96X98ET HP EB845G11 R5-8540U 14 16GB/512 PC 9G0P7ET HP EB845G11 R5-8540U 14 16GB/512 PC 9G0W2ET HP EB845G11 R5-8540U 14 16GB/512 PC 9G0Y2ET HP EB845G11 R5-8540U 14 16GB/512 PC 9G121ET HP EB845G11 R5-8540U 14 16GB/512 PC A40HRPT HP EB845G11 R5-8540U 14 16GB/512 PC A44LBUA HP EB845G11 R5-8540U 14 16GB/512 PC A4UH3US HP EB845G11 R5-8540U 14 16GB/512 PC A6SC4UP HP EB845G11 R5-8540U 14 16GB/512 PC A7KE9PT HP EB845G11 R5-8540U 14 16GB/512 PC B17D6UC HP EB845G11 R5-8540U 14 16GB/512 PC B82JJUA HP EB845G11 R5-8540U 14 16GB/512 PC A26VFEA HP EB845G11 R5-8540U 14 16GB/512 PC AMD 9G0Y3ET HP EB845G11 R5-8540U 14 32GB/1T PC A85QHUP HP EB845G11 R5-8540U 14 32GB/512 LTE5GPC A85SZUP HP EB845G11 R5-8540U 14 32GB/512 LTEA PC 927S2ES HP EB845G11 R5-8540U 14 32GB/512 PC A5NQ0UP HP EB845G11 R5-8540U 14 32GB/512 PC AQ8A7EC HP EB845G11 R5-8540U 14 32GB/512 PC AQ8A8EC HP EB845G11 R5-8540U 14 32GB/512 PC AR3W4EC HP EB845G11 R5-8540U 14 32GB/512 PC AR8X8EC HP EB845G11 R5-8540U 14 32GB/512 PC AX3Q4EC HP EB845G11 R5-8540U 14 64GB/512 PC 9G148ET HP EB845G11 R7-8840HS 14 32GB/1T LTE5GPC 928L0ES HP EB845G11 R7-8840HS 14 32GB/1T LTEA PC 9G184ET HP EB845G11 R7-8840HS 14 32GB/1T PC AK6D9EC HP EB845G11 R7-8840HS 14 32GB/256 PC AW5U6EC HP EB845G11 R7-8840HS 14 32GB/256 PC 9G0W4ET HP EB845G11 R7-8840HS 14 32GB/512 PC A58Y7UC HP EB845G11 R7-8840HS 14 32GB/512LTE5GPC A45WLUP HP EB845G11 R7-8840U 14 16GB/1T PC 928Q1ES HP EB845G11 R7-8840U 14 16GB/256 PC 928Q2ES HP EB845G11 R7-8840U 14 16GB/256 PC A4UJ7US HP EB845G11 R7-8840U 14 16GB/256 PC AZ0X9EC HP EB845G11 R7-8840U 14 16GB/256 PC B7UK1EC HP EB845G11 R7-8840U 14 16GB/256 PC 96X97ET HP EB845G11 R7-8840U 14 16GB/512 PC 9G0M0ET HP EB845G11 R7-8840U 14 16GB/512 PC 9G0W3ET HP EB845G11 R7-8840U 14 16GB/512 PC 9G0Y5ET HP EB845G11 R7-8840U 14 16GB/512 PC 9G0Y6ET HP EB845G11 R7-8840U 14 16GB/512 PC 9G122ET HP EB845G11 R7-8840U 14 16GB/512 PC A36ZTET HP EB845G11 R7-8840U 14 16GB/512 PC A40HSPT HP EB845G11 R7-8840U 14 16GB/512 PC A44LCUA HP EB845G11 R7-8840U 14 16GB/512 PC A4TR1US HP EB845G11 R7-8840U 14 16GB/512 PC A76RPPP HP EB845G11 R7-8840U 14 16GB/512 PC A76V6UC HP EB845G11 R7-8840U 14 16GB/512 PC A7KB0PT HP EB845G11 R7-8840U 14 16GB/512 PC B13DLUC HP EB845G11 R7-8840U 14 16GB/512 PC B5SD4E8 HP EB845G11 R7-8840U 14 16GB/512 PC B5SD4E8R HP EB845G11 R7-8840U 14 16GB/512 PC B5SW1EC HP EB845G11 R7-8840U 14 16GB/512 PC B7GV7EC HP EB845G11 R7-8840U 14 16GB/512 PC B7SG2UP HP EB845G11 R7-8840U 14 16GB/512 PC B82JKUA HP EB845G11 R7-8840U 14 16GB/512 PC A08N6AA HP EB845G11 R7-8840U 14 32GB/1T LTE5G PC 9G147ET HP EB845G11 R7-8840U 14 32GB/1T PC A44LGUA HP EB845G11 R7-8840U 14 32GB/1T PC A58P5PC HP EB845G11 R7-8840U 14 32GB/1T PC A8UN2UP HP EB845G11 R7-8840U 14 32GB/1T PC B4US9UP HP EB845G11 R7-8840U 14 32GB/1T PC B64F5E8 HP EB845G11 R7-8840U 14 32GB/1T PC B64F5E8R HP EB845G11 R7-8840U 14 32GB/1T PC A26VGEA HP EB845G11 R7-8840U 14 32GB/1T PC AMD R A26VGEAR HP EB845G11 R7-8840U 14 32GB/1T PC AMD R 927S3ES HP EB845G11 R7-8840U 14 32GB/512 PC A08NCAA HP EB845G11 R7-8840U 14 32GB/512 PC A3GB5UP HP EB845G11 R7-8840U 14 32GB/512 PC AK1X1UC HP EB845G11 R7-8840U 14 32GB/512 PC AN9G7UP HP EB845G11 R7-8840U 14 32GB/512 PC AQ7E2EC HP EB845G11 R7-8840U 14 32GB/512 PC AQ9N8EC HP EB845G11 R7-8840U 14 32GB/512 PC AR6Z3UC HP EB845G11 R7-8840U 14 32GB/512 PC AT4H6UC HP EB845G11 R7-8840U 14 32GB/512 PC AT4J4UC HP EB845G11 R7-8840U 14 32GB/512 PC B0ZN0EC HP EB845G11 R7-8840U 14 32GB/512 PC B17RZEC HP EB845G11 R7-8840U 14 32GB/512 PC B7SD6UP HP EB845G11 R7-8840U 14 32GB/512 PC B82JMUA HP EB845G11 R7-8840U 14 64GB/512 PC A08NBAA HP EB845G11 R7-8840U 14 8GB/256 PC

Description

LCD Panel — Layer Structure

Frequently Asked Questions & Solutions

What are the resolution and refresh rate of this screen?

Resolution: 1920(RGB)×1200, 16:10, WUXGA | Refresh Rate: 60HZ.

Important considerations:

Your laptop's graphics chip (GPU) must support this resolution and refresh rate. For example, 4K (3840x2160) requires a GPU with DisplayPort 1.2 or higher, and the LCD cable must have sufficient bandwidth (typically 40‑pin eDP).
If your original screen was 1366x768 and you install a 1920x1080 panel, the system may work but the BIOS/EDID must recognise the new resolution – some older laptops are locked to the original resolution.
High refresh rates (e.g., 144Hz) require a compatible cable and graphics output – ensure your laptop supports it.

If you are upgrading to a higher resolution, we recommend checking your laptop's service manual or online forums for confirmed compatibility.

What interface does this screen use, and what are the connector details?

Interface: EDP 30 pin, Width: 0.75 inch (19mm), Pitch: 0.5mm
Connector width: 19mm – this is the physical width of the connector. Ensure your motherboard's socket has the same width – a mismatched width means the cable will not fit.
Pin pitch: 0.5mm – this is the distance between pins. Common pitches are 0.4mm and 0.5mm. They are not interchangeable – a 0.5mm cable will not fit a 0.4mm socket.

Common interface types for reference:

eDP 30 pin, Narrow: Width 0.67 inch (17mm), Pitch 0.4mm – common in ultra‑thin laptops.
eDP 30 pin, Standard: Width 0.75 inch (19mm), Pitch 0.5mm – common in standard 14″–15.6″ models.
eDP 40 pin, Narrow: Width 0.79 inch (20mm) or 0.83 inch (21mm), Pitch 0.4mm – used for 4K and high‑refresh panels.
eDP 40 pin, Standard: Width 1.0 inch (25mm), Pitch 0.5mm – used in larger gaming laptops.
LVDS 40 pin: Width 1.0 inch (25mm), Pitch 0.5mm – older interface, limited bandwidth.

How to verify: Check the connector on your original screen – look for printed labels (e.g., "30P 0.4mm") or measure with a ruler. Compare with our product photos.

If you are unsure, send us a clear photo of your original screen's connector – we can match it for you.

What is the physical size of this screen?

Screen size: 14.0 (measured diagonally).

Important: Even a 0.1‑inch difference can make the panel not fit in your bezel or the mounting holes may not align. Always measure your current screen's active area (visible portion) and outer dimensions (including the mounting tabs).

Additionally, check the aspect ratio – most modern laptops use 16:9, but some use 16:10 (which is slightly taller). A 16:10 screen in a 16:9 bezel will not fit physically, and vice versa.

How to measure: Remove the screen from the laptop and measure the diagonal of the active area (from corner to corner). Also measure the width and height of the entire panel (including the metal frame). Compare these numbers with our product specifications.

Is this a touchscreen?

Touch support: No. This is a standard (non‑touch) panel.

It will work in any laptop that accepts a non‑touch screen. If your laptop originally had a touchscreen, installing this non‑touch panel will result in lost touch functionality (but the display will still work). You may also need to use a non‑touch LCD cable.

What is the grade/condition of this screen?

Grade: New Grade A+.

Understanding LCD grades:

Grade A+ (New): Brand new, flawless panel, zero dead pixels, uniform brightness – the highest quality.
Grade A (New compatible): New, but may have minor cosmetic variations (e.g., slightly different backlight uniformity) – rarely noticeable.
Grade B (Used/Refurbished): May have a few (<5) dead pixels or minor scratches that do not affect performance – suitable for budget repairs.

We ship all screens in the grade stated on the product page. All screens are tested for functionality – no lines, no flickering, and backlight is working.

If you require a specific grade, please check the product description or contact us before ordering.

Does this screen have any dead pixels or defects?

All our LCD screens are strictly tested before shipping. They are guaranteed to be free of dead pixels, bright dots, and lines at the time of shipment.

What to do if you find defects after installation:

Check if the issue is caused by a loose cable – reseat the LCD cable on both ends.
Test the screen on another compatible laptop (if possible) to isolate the issue.
If the defects are clearly on the panel (e.g., a cluster of dead pixels or a visible scratch), contact our support within 7 days with photos – we will arrange a replacement or refund.

Our warranty covers manufacturing defects only – physical damage during installation is not covered.

Where is the screen physically located, and how is it attached?

The LCD screen is located inside the display lid (A Cover + B Cover) of the laptop. It is attached as follows:

To the A Cover (top lid): The screen is usually screwed onto the A Cover using 4‑8 small screws around the edges. Some models use adhesive tape or a metal frame instead of screws.
Behind the B Cover (bezel): The bezel covers the front of the screen – it must be removed first to access the screen.
The LCD cable connects from the back of the screen (or bottom edge) to the motherboard, passing through the hinge.
The screen also has a backlight cable (sometimes integrated with the main cable) that supplies power to the LED backlight.

Accessing the screen requires removing the bezel – some models also require removing the entire display assembly (lid) from the base to avoid damaging cables.

How do I connect the LCD cable to the screen and motherboard?

The connection involves two ends:

Screen end: The cable plugs into a connector on the back of the LCD panel (or at the bottom edge). This is typically a ZIF (Zero Insertion Force) connector. To connect:
- Flip up the small locking tab on the screen connector.
- Insert the cable with the gold contacts facing up (toward the tab) – the cable is often marked with a blue or red stripe to indicate pin 1.
- Press the tab down firmly to lock.
Motherboard end: The cable plugs into a header on the system board, usually labelled LCD, LVDS, eDP, or J_LCD. The procedure is the same – lift the ZIF tab, insert the cable correctly, and lock.

Critical: The cable must be inserted all the way – if it is not fully seated, you will get a partial display or no image. Do not force the cable; if it does not go in easily, check the orientation.

Always disconnect the battery before connecting or disconnecting the LCD cable to avoid short circuits.

How to replace the LCD screen step by step?

Note: This is a delicate operation – proceed with caution. If you are not confident, consider using a professional repair service.

Preparation: Power off the laptop, disconnect the AC adapter, and remove the battery (if removable). Work on a clean, soft surface.
Remove the bezel (B Cover):
- Use a plastic spudger or guitar pick to gently pry the bezel off – start from the inner edge (near the screen) and work your way around.
- Some bezels are secured with adhesive – apply low heat (hair dryer) to soften the glue.
- Be careful not to bend or crack the bezel – it is often thin and fragile.
Disconnect the old screen:
- Locate the LCD cable connector on the back of the screen (or at the bottom). Release the ZIF tab and gently pull the cable out.
- If there is a separate backlight cable, disconnect it as well.
- Remove the mounting screws (usually 4‑6) securing the screen to the A Cover.
- Lift the screen out carefully – avoid flexing it.
Install the new screen:
- Place the new screen in the same position – align the screw holes.
- Insert and tighten the mounting screws evenly – do not overtighten.
- Connect the LCD cable – insert it fully into the ZIF connector and lock the tab. Ensure the cable is not twisted or pinched.
- If your screen has a separate backlight cable, connect it as well.
Reattach the bezel:
- Press the bezel back into place – start from one corner and work around, ensuring all clips snap.
- If adhesive was used, apply new adhesive tape or use the original adhesive (if still sticky).
Test before full reassembly:
- Reconnect the battery and power on the laptop – check for proper display (no lines, flickering, or dead pixels).
- Test the brightness adjustment and if touchscreen, test touch functionality.
If everything works, power off, disconnect the battery, and reassemble any remaining covers.

Common pitfalls to avoid:

Forgetting to connect the cable before mounting the screen – you will need to redo the steps.
Pinching the LCD cable in the hinge area – route it carefully exactly as the original.
Using screws that are too long – they can damage the screen or the A Cover.
Not removing all old adhesive – this can cause the bezel to sit unevenly.

Watch our installation video or consult your laptop's service manual for model‑specific details.

What precautions should I take, and what if the screen does not work after installation?

Critical precautions:

Always disconnect the battery before handling any screen or cable – the LCD backlight can carry high voltage (up to 40V) and can damage the inverter or GPU.
Handle the screen by the edges – avoid touching the glass surface or the gold contacts on the cable.
Never bend or flex the screen – the glass can crack easily.
Use ESD protection – wear an anti‑static wrist strap or touch a grounded metal object before touching components.
Do not over‑tighten screws – screen frames are delicate; snug is enough.
Keep the screen clean – any dust or fingerprints on the inner surface will be visible when the backlight is on.

Troubleshooting – what if the screen does not work after installation?

No display (black screen):
- Check that the LCD cable is fully inserted and locked on both the screen and motherboard ends.
- Verify the laptop is powered on (listen for fan or look for caps lock light).
- Test with an external monitor to confirm the laptop is outputting video – if external works, the issue is with the screen or cable.
- Inspect the cable for damage – a pinched cable can break internal traces.
Backlight is on but no image (blank white/grey screen):
- This usually indicates the video data lines are not connected – reseat the cable, check for bent pins on the connector.
- Verify that the screen is compatible with your laptop's interface (e.g., eDP vs LVDS).
Flickering or intermittent display:
- Check cable routing – it may be pinched in the hinge area.
- Ensure the cable is not pulled taut – there should be a slight slack.
Lines, artifacts, or distorted colours:
- Reseat the cable – sometimes a poor connection causes signal noise.
- If lines persist, the screen may be defective – contact support.
Touch not working (for touch screens):
- Confirm the digitizer cable (if separate) is connected.
- Install the correct touch driver – some laptops need a specific driver for the new panel.
- Check BIOS settings – some laptops have a touch enable/disable option.
Brightness adjustment not working:
- Ensure the backlight cable (if separate) is connected.
- Check if the laptop’s brightness keys are functioning – if not, try reinstalling the graphics driver.
Screen is too dark or uneven backlight:
- This could be a backlight issue – ensure the connector is fully seated.
- If the screen is a different model, the brightness levels may be interpreted differently – adjust in the OS.

If you have tried all the above and the problem persists: Contact our support with photos of the screen issue and your laptop model – we will help diagnose and arrange a replacement if necessary.
