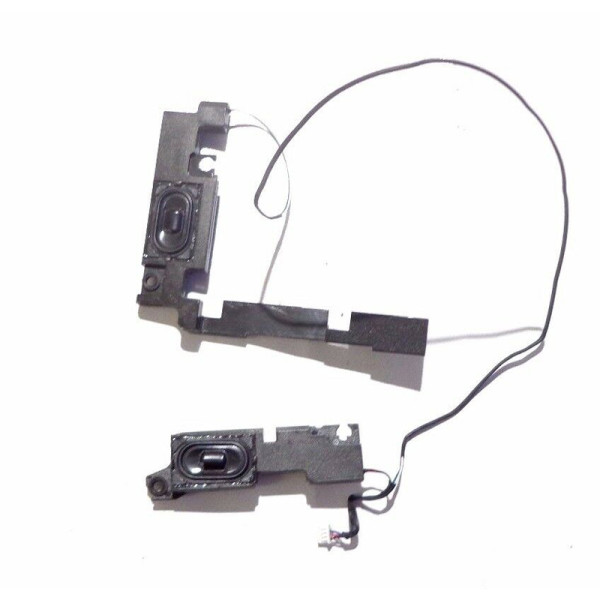

Replacement LENOVO ThinkPad T440S T450S Speaker pk23000j800

Q: Does the speaker housing fit in my laptop?

The speaker shape and mounting holes are designed for pk23000j800 . Check the physical dimensions and screw positions – they must align with your chassis. The speakers are typically mounted on the bottom cover (D‑cover) or the keyboard frame (C‑cover) , near the front left/right edges or alongside the hinge. They sit in dedicated recessed cavities for proper resonance.

Q: Where exactly are the speakers installed inside the laptop?

The internal speakers are typically mounted on the upper chassis (C‑cover / palmrest assembly) or the bottom cover (D‑cover) , depending on the model. Their most common positions are: Left and right front corners of the keyboard deck (near the touchpad area) – this is the most widespread placement for stereo separation. Alongside the display hinge – often found in ultra‑thin or gaming laptops where space is limited. On the bottom cover (firing downward) – some models place them directly on the D‑cover, with sound vents on the underside. Each speaker sits in a dedicated recessed cavity that is shaped to match the speaker housing, ensuring proper acoustic resonance and secure fit. The cavities often have alignment pins or notches to prevent incorrect orientation. Access to the speakers usually requires only removing the bottom cover, but on some models (especially those with C‑cover mounted speakers), you may need to remove the keyboard or the entire upper assembly.

Laptop Thinkpad T450s Internal View — Actual Photo - pcspare.com

How to replace and fix LENOVO ThinkPad T440S T450S Speaker pk23000j800 (Thinkpad T450s)

Repair Guide Thinkpad T450s

Actual internal layout for Thinkpad T450s disassembly by pcpsare.com— helps you locate the part before replacement.

Internal Speaker — Exploded View

Frequently Asked Questions & Solutions

What connector and wattage does this speaker have?

Ensure the connector matches your motherboard's audio header – typically a 2‑pin or 4‑pin connector (often ZIF for FFC or a small pitch wire‑to‑board type). The motherboard header is usually labelled SPK, J_SPK, or SPEAKER. Check polarity – wires are often colour‑coded (red/black or blue/red). Wattage should match the original to avoid distortion or damage.

Does the speaker housing fit in my laptop?

The speaker shape and mounting holes are designed for pk23000j800. Check the physical dimensions and screw positions – they must align with your chassis. The speakers are typically mounted on the bottom cover (D‑cover) or the keyboard frame (C‑cover), near the front left/right edges or alongside the hinge. They sit in dedicated recessed cavities for proper resonance.

How to install the new speakers step by step?

Safety first: Disconnect the main battery cable from the motherboard to avoid short circuits or audio chip damage.
Remove the bottom cover (D‑cover) and any internal shielding to expose the speaker compartments.
Locate the speaker slots – they are usually positioned on the left and right sides of the chassis, either near the front edge (palmrest area) or alongside the hinge.
Disconnect the old speakers by gently unplugging their cables from the motherboard headers (marked SPK / J_SPK / SPEAKER). If the connector is a ZIF type, flip up the locking tab before pulling.
Remove the old speakers by taking out the securing screws (often 1‑2 per speaker) and carefully lifting them from their recessed cavities. Some are held with adhesive tape – use a gentle prying tool if needed.
Mount the new speakers in the same cavities, aligning the screw holes. Secure them with the original screws – do not overtighten, as this can distort the plastic housing.
Route the flexible cables neatly along the original cable grooves to avoid pinching when the bottom cover is replaced.
Connect the new cables to the motherboard headers – ensure correct left/right channel assignment and observe polarity (red/black or blue/red colour coding). For ZIF connectors, insert the cable fully with the gold contacts facing the locking tab, then press the tab down firmly.
Test audio output before fully reassembling – reconnect the battery, power on the laptop, play a test sound or music file, and verify both channels work clearly without distortion.
Power off, disconnect the battery again, and reassemble the covers and screws.

Note: The speaker cables are usually FFC (Flexible Flat Cable) or a wire harness with small connectors. Always handle them gently – avoid sharp bends or pulling on the wires themselves.

Where exactly are the speakers installed inside the laptop?

The internal speakers are typically mounted on the upper chassis (C‑cover / palmrest assembly) or the bottom cover (D‑cover), depending on the model. Their most common positions are:

Left and right front corners of the keyboard deck (near the touchpad area) – this is the most widespread placement for stereo separation.
Alongside the display hinge – often found in ultra‑thin or gaming laptops where space is limited.
On the bottom cover (firing downward) – some models place them directly on the D‑cover, with sound vents on the underside.

Each speaker sits in a dedicated recessed cavity that is shaped to match the speaker housing, ensuring proper acoustic resonance and secure fit. The cavities often have alignment pins or notches to prevent incorrect orientation.

Access to the speakers usually requires only removing the bottom cover, but on some models (especially those with C‑cover mounted speakers), you may need to remove the keyboard or the entire upper assembly.

How do I connect the speaker cables to the motherboard?

The speaker cables plug directly into dedicated headers on the main system board (motherboard). These headers are usually clearly labelled with silk‑screen markings such as:

SPK / SPEAKER
J_SPK / J_SPEAKER
L‑/R+ (indicating left and right channels, often with polarity signs)

Connection procedure:

Identify the correct header – it is usually located near the audio codec chip or at the edge of the motherboard for easy cable routing.
If the connector is a ZIF (Zero Insertion Force) type, flip up the small locking tab, insert the flat cable fully with the gold contacts facing the tab, then press the tab down to lock.
If it is a standard 2‑pin or 4‑pin header with a wire‑to‑board connector, simply align the plug with the header and push gently until it clicks.
Observe polarity: The wires are typically colour‑coded – red (or blue) for positive (+), black (or white) for negative (-). Match the markings on the motherboard (often a “+” symbol or the channel label). Incorrect polarity will still produce sound but may cause phase cancellation (weak bass) or reduced volume.

Important: Never force the connector – if it doesn’t slide in easily, check orientation. Bent pins can permanently damage the motherboard header.

What precautions and troubleshooting tips should I know?

Critical precautions:

Always disconnect the battery before handling speakers – even a small current can damage the audio chip or cause unwanted buzzing during installation.
Handle cables with extreme care – the FFC or thin wires are fragile. Avoid creasing, pulling, or twisting them. Always hold the connector body, not the wires.
Use the correct screws – speaker screws are often shorter than others. Using longer screws can puncture the speaker cone or damage the chassis.
Check impedance – although most laptop speakers are 4Ω or 8Ω, ensure the replacement matches the original impedance; otherwise, the audio amplifier may overheat or produce lower volume.
Test with a low volume initially to avoid sudden distortion that could indicate a wiring mistake.

Troubleshooting if sound is not working or is distorted:

No sound: Re‑check the cable connections on both the speaker side and the motherboard. Ensure the ZIF tab is fully locked.
One channel quiet/missing: Swap the left/right cables to see if the problem follows the speaker or the motherboard channel. If it moves, the speaker is faulty; if not, check the motherboard header.
Distorted or buzzing sound: Verify that the speaker is securely mounted (loose screws cause vibration). Also check that the cable is not touching any moving parts (e.g., fan) or being pinched by the chassis.
Intermittent sound: Clean the connector pins with a dry cloth and reseat the cable firmly.
Software issue: After hardware installation, update or reinstall the audio driver, and check that the sound is not muted in the operating system.

If the problem persists, consult your laptop’s service manual or contact our support team with your model details.
